Institute of Acoustics: Acoustics Bulletin March / April 2021

Acoustics Bulletin March / April 2021

Volume 47 No 2 March/April 2021

CPD – Why you must do it and how to get started Page 14 Electro-Acoustics Group takes it up a level at Reproduced Sound Page 22

COVER STORY: Quantitative measurements to enhance performance of acoustic musical instruments and improve manufacturing Page 30

IOA response to ICCAN’s Future of Aviation Noise Management Page 46

ACOUSTICS ACOUSTICS

BULLETIN BULLETIN

« Institute of ‘S Acoustics

30cm

75°

NoiseMap

e five Mapping the way to a quieter future . .. with new enhancements for high-speed rail

www.noisemap.com

email: rogertompsett@noisemap.com tel: +44 20 3355 9734

N oiseMap

Noise and Vibration Instrumentation

Multichannel Acquisition Analysis Software NVH Acoustic Imaging Sensors Electroacoustics Building Acoustics

Human Vibration Air Quality Monitoring Noise & Vibration Meters R&D and Production Testing Cloud-based Environmental Monitoring

www.acsoft.co.uk 01234 639550 sales@acsoft.co.uk

ACOUSTICS BULLETIN

Contacts Publisher Juliet Loiselle

Contributions, letters and information on new products to: Nicky Rogers Email: nickyr@warnersgroup.co.uk Tel: 01778 391128

Acoustics Bulletin Volume 47 No 2 March/April 2021

Institute aﬀ airs 5 President’s letter

Features 30 COVER STORY Technical contribution – Quantitative measurements to enhance performance of acoustic musical instruments and improve manufacturing

6 Engineering Division

14 CPD – why you must do it and how to get started

Advertising: Dennis Baylis MIOA Email: dennis.baylis@ioa.org.uk Tel: 00 33 (0)5 62 70 99 25

16 IOA membership – engage more in 2021

46 IOA response to ICCAN’s Future of Aviation Noise Management

18 Early Careers Group – further education in the time of a pandemic

54 London Greenwich foot tunnel acoustics characterisation

Published and produced by: The Institute of Acoustics Silbury Court, 406 Silbury Boulevard, Milton Keynes, Buckinghamshire MK9 2AF Tel: 0300 999 9675

22 Reproduced Sound – Electroacoustics Group taking it up a level

56 ISO 717 Parts 1 & 2 and ISO 10140 series update

59 Obituary – Dr Geoﬀ Jackson

Regular 8 2021 events

General news 58 Industry news

10 IOA STEM activity

Edited, designed and printed by: Warners Group Publications The Maltings West Street Bourne Lincs

60 IOA Specialist Groups reports

69 Industry updates and new products

65 Branch news

70 Institute diary

This publication is printed by Warners 01778 395111

PE10 9PH

Views expressed in Acoustics Bulletin are not necessarily the oﬃ cial view of the Institute, nor do individual contributions reﬂ ect the opinions of the Editor. While every care has been taken in the preparation of this journal, the publishers cannot be held responsible for the accuracy of the information herein, or any consequence arising from them. Multiple copying of the contents or parts thereof without permission is in breach of copyright.

oN (@ \nstitute of G Acoustics

Technical articles review procedure This review picks up key points that may need clarifying before publication, and is not an in-depth peer review.

Permission is usually given upon written application to the Institute to copy illustrations or short extracts from the text or individual contributions, provided that the sources (and where appropriate the copyright) are acknowledged.

The Institute of Acoustics is the UK’s professional body for those working in acoustics, noise and vibration. It was formed in 1974 from the amalgamation of the Acoustics Group of the Institute of Physics and the British Acoustical Society. The Institute of Acoustics is a nominated body of the Engineering Council, oﬀ ering registration at Chartered and Incorporated Engineer levels. The Institute has over 3000 members working in a diverse range of research, educational, governmental and industrial organisations. This multidisciplinary culture provides a productive environment for cross-fertilisation of ideas and initiatives. The range of interests of members within the world of acoustics is equally wide, embracing such aspects as aerodynamics, architectural acoustics, building acoustics, electroacoustic, engineering dynamics, noise and vibration, hearing, speech, physical acoustics, underwater acoustics, together with a variety of environmental aspects. The Institute is a Registered Charity no. 267026

The Institute of Acoustics does not necessarily endorse the products or the claims made by the advertisers in the Acoustics Bulletin or on literature inserted therein.

oN (@ \nstitute of G Acoustics

Annual Subscription (6 issues) £134.00 Single copy £23.00

@2021 The Institute of Acoustics

ACOUSTICS BULLETIN MARCH / APRIL 2021 3

THE CIRRUS RESEARCH ADVANTAGE Get so much more from your noise data

Our NoiseTools data analysis and reporting software is completely licence-free, for life. No tricks or gimmicks. Just one of the benefits of choosing Cirrus Research acoustic measurement equipment.

y (Cirrus

See noise differently with Cirrus Research:

cirrusresearch.com/cirrusadvantage

sales@cirrusresearch.com www.cirrusresearch.co.uk +44 1723 891655

noise

LETTER FROM MILTON KEYNES

Dear Member

microphones, motor vehicles, aircraft engines, buildings, ultrasonics and underwater are all part of our family.

need to start this letter with a ‘thank you’ and an apology.

Membership renewal 2021 The thank you is to all of you who have renewed your membership for 2021. One of the responsibilities of the President, supported by the Executive Committee and Chief Executive, is to manage the ﬁ nances of the Institute. And having some certainty over revenue is essential to being able to plan what we can do for the membership in terms of events, CPD opportunities and general outreach such as our STEM activities. The apology is for the confusion I have caused by trying to sort out a problem that I know some members have encountered at the start of each year. Previously, your membership certiﬁ cate showed that your membership in any year was valid until 31 December. The usual pattern was for the membership renewal to go out in January, and on receipt of the relevant membership fee, the certiﬁ cate would be reissued for the new year. However, for those in consultancy, some clients require proof of IOA membership when considering commissioning some work. If that happens in early January (which I understand does occur), the relevant member cannot demonstrate that they are a current member because the certiﬁ cate has expired and the renewal process has not yet been completed for the new year. To address this issue, I suggested that we should simply extend the validity of the membership certiﬁ cate until 31 March, to avoid that hiatus. Unfortunately, many members have interpreted this change as meaning that subscriptions are not now due until 1 April. THIS IS NOT THE CASE. Our membership year runs from 1 January to 31 December each year, and subscriptions fall due as soon as the renewal notice is received in January. If you have not yet renewed because I confused you in this way – please would you accept my apologies and renew your membership as soon as possible. Thank you.

Ironically, one of the advantages of our enforced on-line presence is that it is easier for each of us to log in to a talk on a subject that is not part of our day-to- day activity. Doing so not only provides an opportunity for learning about other aspects of acoustics, but attending the meeting can be noted as part of our CPD. I attended an underwater acoustics lecture a couple of months ago and am still amazed at how a stream of bubbles can eﬀ ectively be used as a noise barrier when building oﬀ -shore structures. We do, though, each have a responsibility to our profession, and, in particular, to behave appropriately and with integrity. The IOA has a Code of Conduct and our Membership Committee follow a very rigorous process when faced with an allegation that a member has broken the Code of Conduct. One of the key elements of the Code of Conduct is the responsibility on each of us not to work beyond our own competence. If we do, we not only run the risk of letting ourselves down, but also letting down all our colleagues in the profession. If you have not done so recently, have a look at our Code of Conduct to remind yourself of our obligations: www.ioa.org.uk/about-us/our-members-code-conduct

National Apprenticeship Week (NAW) NAW occurred between 8 and 14 February 2021 and our colleagues in the Association of Noise Consultants have published the videos produced for their 2020 virtual awards ceremony. The videos showcase a variety of acoustics projects and are part of the #exploreacoustics campaign supporting the profession’s STEM outreach work. The videos are on the ANC twitter feed @TheANC1973, whilst others are on their You Tube channel: www.youtube.com/channel/UCVfSsvvu3rhV- ZojoSw-b0Q Do have a look at them. Finally, when you read this letter, the days will be getting longer, and we will be emerging from the latest lockdown. I am sure we are all hoping that the vaccination programme will mean that we will soon be able to go back to enjoying time with friends and family again. It has been good hearing from those members who have had their ﬁ rst COVID vaccination (as I have).

The profession of acoustics We are hugely privileged to work in this great profession. Not only do we have our own interest in the ﬁ eld of acoustics that occupies us daily, but we are each linked through our IOA membership to other members who are involved in very diﬀ erent, diverse and fascinating topics. The acoustics of speech, hearing, loudspeakers,

4 ) 4

In the meantime, stay safe With best wishes,

ACOUSTICS BULLETIN MARCH / APRIL 2021 5

INSTITUTE AFFAIRS

Engineering Division

The IOA Engineering Division will support you through the process to help you become one of almost 225,000 registrants that hold international professional recognition.

By Blane Judd BEng FCGI CEng FIET FCIBSE, Engineering Manager

is not listed, as we can still help you through the process on the individual route.

e held some more interviews in mid-February but the results came too late for this edition’s deadline, look out for proﬁ les in the next issue though, subject to the candidates being successful. I always say to candidates that we won’t put them forward unless we think they will be successful, but it’s down to candidates on the day to show how they meet the UK-SPEC competencies. We have already started to draw up the new documentation to comply with the new UK-SPEC version four and are looking to start implementation in the middle of the year. For those who are already working on their submission you will be able to use UK-SPEC version three submissions up to the end of the year. From July onwards, however, we will be encouraging candidates to work to version four. As I said in my last report, the Engineering Council expects us to have made the transition by December 2021. Since, on average, it takes six months to complete the process, July is considered to be a suitable start point for transition. Emma Lilliman continues to do a great job supporting candidates and keeping people on track and Neil Ferguson is helping us with academic equivalence support for those candidates who do not have exemplifying qualiﬁ cations. You can check for yourself if your qualiﬁ cations meet the required speciﬁ cation by visiting the Engineering Council website www.engc.org.uk . But please don’t panic if your speciﬁ c qualiﬁ cation

Remember that we are here to help you get through the process and advice and support is oﬀ ered to every candidate personally. For the individual route, the Institute accepts a number of courses in relevant subjects such as audio technology from certain academic centres, as being equivalent to accredited courses for the purposes of EC registration, without the need for further assessment. The Institute recognises the IOA Diploma course and the several masters courses linked to it as providing evidence if you are looking to gain CEng registration. You could also oﬀ er a PhD qualiﬁ cation, depending upon the content of the associated taught element. We can also oﬀ er support for registration via a ‘technical report’ route, if you do not have the relevant qualiﬁ cations to help you demonstrate you are working as a professional engineer in acoustics. The election process is overseen by the Institute’s Engineering Division Committee, which is made up of volunteers from the membership, to whom we are extremely grateful. They represent the 300 or so members holding EC registration. They provide the essential peer review process that aﬃ rms that you are at the appropriate level for recognition as an Engineering Council Registered Professional Engineer.

Interviews Our next round of interviews will be later in the year and, as usual, we have candidates working towards interview dates. We hold a number of interview events through the year, depending on the number of candidates we have coming forward for registration. If you are interested in taking the next step to becoming a professionally registered engineer, email acousticsengineering@ioa. org.uk sending a copy of your CV and copies of certiﬁ cates and transcripts of your qualiﬁ cations. It is important that we have all of your further and higher education certiﬁ cates, not just your highest attainment.

Engineerin: wens ?

Academic qualiﬁ cations The requirements for academic qualiﬁ cations for CEng and IEng changed in 1999. Pre-1999 an honours degree at 2:2 or above was required for CEng or a higher diploma/certiﬁ cate for IEng. Post- 1999 this changed and for CEng a master’s degree was required or an ordinary degree for IEng.

There are two routes: 1. standard route if you have the appropriate EC-accredited qualiﬁ cation (also referred to as an exemplifying qualiﬁ cation) in acoustics; and the 2. individual route , which requires further preparatory work from you before submitting evidence of your competence.

6 ACOUSTICS BULLETIN MARCH / APRIL 2021

LOOKING TO TEST PRODUCT NOISE LEVELS WITH CONFIDENCE AND CONTROL?

Briiel & Kjze aeVnN MEASLIRE

JOB DONE.

mit

Whether it is for compliance or quality assurance, when it comes to product noise testing, it is essential to have a sound level meter that gets your job done ﬁ rst time, every time and without hassle. The new B&K 2245 Product Noise gives you absolute conﬁ dence and control through user-friendly mobile apps and functionality tailored for your task, including sound power test processes to meet ISO standards, wireless data transfer, instant analysis and results, smart data handling on your PC and more. B&K 2245 is type approved by PTB.

INTRODUCING A NEW SOUND LEVEL METER DESIGNED FOR YOUR JOB.

| 4 ——

To simplify your job-to-do, visit www.bksv.com/2245

Hottinger Bruel & Kjaer UK Ltd Telephone: +44 1223 389 800 Email: ukinfo@bksv.com

INSTITUTE AFFAIRS

2021 Conference programme

Understandably, the 2021 conference programme is likely to be aﬀ ected by the COVID-19 virus, so always check the details.

ICSV2021, INTERNATIONAL CONGRESS ON SOUND AND VIBRATION 11-15 July 2021 Prague, Czech Republic www.icsv27.org

HEAR FOR TOMORROW 6 October 2021 Royal Academy of Music, London Organised by IOA and Hearing Conservation Association

ACOUSTICS 2021 11-12 October 2021 Crowne Plaza Hotel, Chester

INTER-NOISE 2021 1-4 August 2021 Washington, USA www.internoise2021.org (See more details on page 58)

REPRODUCED SOUND 2021 16-18 November 2021 The Bristol Hotel, Bristol Organised by the Electroacoustics Group

DAGA 2021, 47th ANNUAL CONFERENCE ON ACOUSTICS 15-18 August 2021 Vienna, Austria www.daga2021.eu/en

INTERNATIONAL EVENTS

BNAM2020 E-CONFERENCE (Baltic-Nordic Acoustics Meeting) 3-5 May 2021 Oslo, Norway www.bnam2021.org

FIA 2020, 12th IBEROAMERICAN CONGRESS ON ACOUSTICS 29 August-1 September 2021 Brazil ﬁ a2020.com.br

AIA, 47th NATIONAL CONFERENCE OF THE ACOUSTICS SOCIETY OF ITALY E-CONFERENCE 24-28 May 2021 Matera, Italy www.acustica-aia.it/en/event/47th-aia-national-conference-online

EURONOISE 2021, online 25-27 October 2021 www.daga2021.eu/en

NOVEM 2021 (NOISE AND VIBRATION: EMERGING METHODS) 13-15 December 2021 Auckland, New Zealand www.novem2021.ac.nz

ICBEN 13th CONGRESS ON NOISE AS A PUBLIC HEALTH PROBLEM 14-17 June 2021 Sweden www.icben2021.se

8 ACOUSTICS BULLETIN MARCH / APRIL 2021

WHATEVER YOU MEASURE, SEE THE WHOLE PICTURE WITH THE NOR-145

Nor14!

WNnorsone %

42 “OF

01371 871030 hotline@campbell-associates.co.uk www.campbell-associates.co.uk

INSTITUTE AFFAIRS

Here, we explore some of our acoustics ambassadors’ top tips on producing and presenting acoustics activities for a new online STEM audience. IOA STEM activity

By IOA STEM Ambassadors, Nikhil Mistry and Alex Krasnic

uring the pandemic, face-to-face STEM events are being curtailed across schools and other venues across the British Isles. Where physical STEM Club activities and Big Bang Fairs were once common events, STEM Learning (the not-for-proﬁ t organisation which manages the registration of STEM Ambassadors) is determined not to let the crisis undermine the tens of thousands of outreach activities organised by volunteers each year, so they have been actively encouraging new ways of delivering STEM activities to remote audiences. This article follows the home- schooling and remote teaching trend by oﬀ ering anyone (not just STEM Ambassadors) our top tips for formulating, planning and delivering online activities (in no particular

Top ﬁ ve digital tips for online content: 1. Consider investing in reasonable quality audio-visual hardware. This will enable you to get the best out of your presentations. o Alternatively, you can make small improvements for free, by thinking about your recording environment and eﬀ ective use of your equipment. How about placing your microphone close to soft furnishings or recording in a controlled environment (e.g. in a car or facing into a ﬁ lled wardrobe), or acquiring a few low-cost absorption panels. ‘Audacity’ is good freeware and has a noise reduction feature, which you can use post-recording.

order and with additional input from the Institute’s STEM Committee members: Vicky Stewart and Matthew Muirhead).

Above: IOA STEM Ambassador, Nikhil Mistry

Below: A 2019 STEM event

2. Split your presentation up into easy-to-follow sections. Consider starting with a 30-second ‘hook’ using accessible language, which connects your work to the audience’s interest, letting them know the real-world beneﬁ ts, thereby grabbing their attention from the start. P12

10 ACOUSTICS BULLETIN MARCH / APRIL 2021

Wallsorba TM

Acoustic Panels

Soundsorba manufacture and supply a wide range of acoustic panels for reducing sound in buildings.

yo - es

www.soundsorba.com

• Wide range of modern vibrant colours • Custom sizes can be manufactured • Soft fabric facings • Class A performance

Wavesorba TM

Woodsorba TM

Acoustic Panels

• Futuristic shape

• Lightweight

• Beauty of real wood facings

• Modern face patterns

• Soothing wave pattern

• High acoustic performance

• High impact resistance

• Maintenance free

#8 a

Cloudsorba TM

Soundsorba’s highly skilled and experienced acoustic engineers will be pleased to help with any application of our acoustic products for your project.

Please contact us by calling 01494 536888 or emailing info@soundsorba.com for any questions you may have.

SOUNDSORBA LIMITED , 27-29 DESBOROUGH STREET, HIGH WYCOMBE, BUCKS HP11 2LZ, UK

TEL: +44 (0)1494 536888 FAX: +44 (0)1494 536818 EMAIL: info@soundsorba.com

• Wider range of different shapes available

• High acoustic rating

• Suitable for a wide range of building interiors

INSTITUTE AFFAIRS

Consider topics such as music, sports, arts and nature. For example, highlight the acoustics of a recording studio, how acoustics is used to design the inside of a football stadium or how marine mammals hunt and communicate.

Left: While in-person STEM events are on hold, there are still plenty of ways to reach audiences

5. Keep the level of scientiﬁ c detail appropriate to your audience. Remember which year group you are presenting to in schools. This will help adjust your level of technical language accordingly. o It is important to link the schools’ curriculum with careers and how they would use the science in the future, as this is a benchmark upon which schools are judged in their careers advice and support (one of eight Gatsby Benchmarks).

Top ﬁ ve general tips for remote presentations: 1. For schools: make preparations before the day of the event. Liaise with the teacher(s) in the class you are presenting to, furnishing them with session notes so they know what to expect over the course of the session. Remember that teachers can act as your ‘eyes and ears’ in the classroom without you being there, so establishing a two-way communication to the class is essential.

o For schools, a run-down of any activity instructions/raw materials for use by pupils, a step-by-step guide for your presentation and a discussion of outcomes learned/achievement of educational objectives, are greatly welcomed by teachers.

We hope you have found these tips useful but if you’re looking for further information, STEM Learning have produced some insightful ‘how to’ guides, to provide STEM Ambassadors with additional pointers on presenting remote sessions through outreach activities, as well as a host of other online resources, including the IOA’s own blog pages.

3. Stuck for inspiration? Explore the wealth of examples by other STEM Ambassadors, giving a ﬂ avour of how and what your presentation can borrow from. Use the links at the end of this article as a starter. o Draw inspiration from others around you to shape your online content. Don’t be afraid to reach out to other creators for advice or collaboration.

2. Consider preparing supporting material to generate interest before your session; consider a video demonstration of a simple acoustics experiment to do at home/school. o This acts as a great way of marketing your digital platform, exposing them to all your other content.

Below: Nikhil Mistry, IOA STEM Ambassador

4. While we’re all stuck at home using our digital devices more than ever, your worldwide audience is now available 24/7. Platforms like: YouTube, Twitter, Instagram, Facebook etc. allow a quick and easy means of achieving the farthest and greatest reach with your work. They’re also a great way of ﬁ nding out what your audience wants, open the ﬂ oor to requests and respond to them.

3. Open-up with a brief talk about yourself and your day-to-day academic/professional role. This will help put your audience at ease, helping them connect more easily. Your audience will learn about how your role makes the world a better place and instil a sense of inclusivity and diversity.

5. Head down, reading endless presentation notes from your desk will likely result in a rapid loss of interest. Enthusing your audience with your passion and transferring that to your activity/presentation (without resorting to long notes), makes A world of diﬀ erence to your audience’s reaction and participation levels. o Try to keep technical jargon and equations to a minimum; use your presentation as an aid to your speech. Using non-technical vocabulary is not ‘dumbing down’, it should make your presentation more accessible.

4. Choose a topic that is dependent on acoustics in some way which your audience can resonate with, again, avoiding jargon where possible.

The following links can be accessed via the digital version of this article: • IOA Blog: www.ioa.org.uk/ioa-blog • ISVR YouTube Channel: www.youtube.com/c/isvrsouthampton • Tips and Support from STEM Learning: www.stem.org.uk/stem-ambassadors/supporting- schools-colleges • Tips from University of the Highlands & Islands: www.thinkuhi.com/stem/page_06.htm

• STEM Learning YouTube Channel: www.youtube.com playlist?list=PLhgK74tFscGXY0C3MVvv9S1MLEhDrK6cF

12 ACOUSTICS BULLETIN MARCH / APRIL 2021

01234 639551 www.svantek.co.uk sales@svantek.co.uk

PRECISE. POWERFUL. ACCURATE.

SVANTEK boast one of the best qualiﬁed and most innovative teams of design engineers in the market. Our range of noise and vibration monitors is second to none with both quality and technical excellence being at the core of the company’s philosophy.

• Whole body human vibration • Hand-arm vibration • Noise at work • Environmental noise and vibration • Building acoustics • Building and ground vibration

INSTITUTE AFFAIRS

CPD – What it is, how to get started and why you must do it

Would you be comfortable taking advice from a professional that had not bothered to keep up to date in their specialism? The same applies to acousticians.

Prepared on behalf of the CPD Committee

nformation about the IOA Continuous Professional Development (CPD) scheme has been made available to our members for several years. However, there still seems to be a problem getting the message across to a few acoustic practitioners about why CPD is important – if not essential. There is also a misapprehension by some members that CPD is onerous, diﬃ cult and time-consuming (update – it really isn’t). Information about the current scheme is available on the IOA website at: www.ioa.org.uk/ membership/professional- development-scheme The information set out on the IOA website is not repeated in this article, but please note that there are a number of helpful downloads available including: • full information and details about the CPD scheme, the process and the CPD plan and record sheets; • an example guide to getting started; • a handy one-page CPD summary document, to be used as an aide-memoire; • examples of completed CPD records (for an academic, consultant, consultant/director and EHO); and • a blank Excel sheet for your own use. IOA members, like professionals in all other disciplines, need to ensure they are aware of and correctly use current information,

may take a couple of hours, but once that has been done, keeping it current should be part of your regular routine. Note that IOA members are under an obligation to maintain and extend their professional knowledge and competencies under the Institute’s Membership Code of Conduct. If you are seeking upgrade to MIOA or FIOA, you will need to include your CPD plan and records as part of the application process.

equipment and practices as appropriate. An IOA member who fails to maintain their competency could bring themselves and the Institute into disrepute and, potentially, expose the member to legal action. In short, if you are not keeping up-to-date, you shouldn’t be working in acoustics. In addition to the Institute’s requirement, you may also have a duty to do so for other reasons e.g. being a Chartered Engineer/scientist. For those who think they don’t do CPD or haven’t got the time to do CPD – but are keeping up-to- date in their ﬁ eld, you are very probably doing CPD on a regular basis. Are you attending in-house technical meetings, IOA branch meetings, on-line conferences/ seminars? Are you keeping informed about technical standards, revised calculation methods, new equipment? Are you renewing your skills or learning a new skill relating to your role in acoustics? These are all CPD activities.

IOA reviews members’ CPD plans The IOA aims to review around 10% of corporate members’ CPD plans annually. Some of these will be reviewed automatically as part of the application process for MIOA and FIOA, the rest will be chosen from active corporate members of the Institute. Submitting CPD records of an insuﬃ cient standard or refusal to submit any documents at all indicates a failure to comply with the Code of Conduct that applies to your membership of the Institute. However, with the resources that are available to you from the IOA, there really is no excuse not to get your CPD plan and records started and keep them updated.

Keep accurate records All that the IOA asks is that you keep records about what you do that relates to CPD. For many acoustic practitioners it is second nature to keep a note of what particular project they are working on. The trick is to do the same for CPD activities so get into the habit of noting down what you have done that is CPD-related. The initial setting up of your CPD plan

If you have any questions or would like help please contact your local branch, or if you have diﬃ culty with this, you can email: membership@ioa.org.uk

14 ACOUSTICS BULLETIN MARCH / APRIL 2021

ANC

New acoustics apprenticeship gears up for launch

Why join the ANC?

A pioneering apprenticeship in acoustics is planning to take its ﬁ rst intake of trainees later this year.

The ANC is the only recognised association for acoustic consultancy businesses in the UK – and offers a range of member benefits.

he Acoustics Technician Level 4 Apprenticeship has been developed as an employer-led, industry initiative, with support from the Association of Noise Consultants (ANC) and the Institute of Acoustics.

Join us and take advantage of opportunities including

It is hoped that the ﬁ rst students can start the apprenticeship in September with work-based training, coupled with study. Richard Grove, Acoustics Director at BDP, is Chairman of the working group which has developed the apprenticeship and he said: “We have had a great deal of interest in the programme and are delighted that we are now in a position to welcome the ﬁ rst apprentices later this year. “The new apprenticeship will help deliver the acousticians of the future, which are needed across a range of industries to meet demand. “The apprentices will have a clear, deﬁ ned career path and the programme will oﬀ er opportunities for diversity and inclusion within the acoustics industry. “It will also bring beneﬁ ts to the higher education sector, by acting as a feeder for degree and other courses. “In the future, it is hoped that as more employers show support for the scheme, other education providers will be able to oﬀ er the training for this apprenticeship too.” The trailblazer group behind the new apprenticeship has produced a FAQ guide, to provide a reference point for those looking at taking on an apprentice, as well as anyone considering it as a career option. Available to view at www.association-of-noise-consultants. co.uk/download/faqs-acoustics-technician-apprenticeship/ the information pulls together general insight and guidance on the Acoustics Technician Apprenticeship for applicants and employers. It also includes details of the Apprenticeship Levy, recruitment advice and details of the structure and format of the training programme.

•

Entry on the ANC website, where you can list the services you provide.

•

ANC publications available at a discount.

•

Involvement in future guideline documents.

•

Regular technical presentations, discussions and networking on the hot subjects of the day at bi- monthly ANC Company meetings.

•

Your views represented on BSI and ISO Committees.

•

Consultation on impending and draft legislation, standards, guidelines and Codes of Practice before they come into force.

•

The chance to look at new ideas and interesting themes – and celebrate the achievements of the industry – at the ANC annual conference and awards event.

•

The opportunity to share ideas and good practice with other acoustic consultants.

The Acoustics Technician Level 4 Apprenticeship has been developed with support from the Association of Noise Consultants (ANC) and the IOA

To find out more about joining the ANC go to www.theanc.co.uk/membership

ty | af} “4

INSTITUTE AFFAIRS

By Alex Shaida, IOA Head of Marketing Engage more as a member in 2021

Networking. Networking has been challenging during lockdown, which is why we’re planning to run more informal online sessions, along with our regular Monday forums. Also, we’ve currently scheduled several in-person events including Acoustics 2021 (in Chester), Reproduced Sound (in Bristol) and there will be some more taking place later this year. Given the unpredictable nature of the pandemic, please check the website for updates.

ACOUSTICS 2020 HAS ADAPTED TO OUR CHALLENGING TIMES G2T8O ‘ra tc Sa HNO

Accreditation. One of the key beneﬁ ts of IOA membership is accreditation. The IOA oﬀ ers diﬀ erent tiers of membership, ranging from Student, Aﬃ liate, Technician, AMIOA to MIOA. The membership grades depend on your circumstances and we are always open to discussing these as your needs and circumstances change.

ter for our health ———

Last year, the world suddenly turned upside down, as COVID-19 became an everyday part of all our lives. In the past months, this has brought about many changes to the way our members and the Institute interact, with some likely to be only temporary, whereas others may end up becoming more permanent. This year we hope to spend more time together and make it a better year for us all, despite the ongoing restrictions of the pandemic that are set to continue for most of 2021. The fundamental value of IOA membership is professional recognition and helping to inﬂ uence the world in which acousticians work and live. To gain additional membership value, it depends on how much you choose to utilise the various resources on oﬀ er. Career progression is often driven by CPD and networking, and membership oﬀ ers unrivalled opportunities to do both.

As an IOA member, here are some ways to interact more fully in 2021:

Above: A still from the Acoustics Bulletin video

Education. The IOA is traditionally a strong supporter of education in acoustics, and we have been providing a selection of focused short courses via our partner universities, as well as supporting through our partners and providing direct training

CPD. Are you taking full advantage of CPD? This year we plan to run more CPD sessions. If you have any speciﬁ c topics in mind, let us know.

“< Acoustics

ve ou

Right: Acoustics 2020 was held online

16 ACOUSTICS BULLETIN MARCH / APRIL 2021

FEATURE

te oe SP a ©, Sell Equipment

for the Institute of Acoustics Diploma in Acoustics and Noise control. We’ve recently launched our new blended training programme and we plan to increase the level of content for additional learning resources for our members in 2021.

something in particular, please get in touch and we’ll do our utmost to help you ﬁ nd it. In the past couple of years, we’ve also begun to expand our video library, adding branch and group meetings along with videos that shine the light on so many diverse and fascinating aspects of acoustics.

free job postings for acoustics vacancies (currently valid until the end of March 2021).

Above left: We will continue to run more CPD sessions this year

Above right: The IOA buy or sell equipment group is a useful option

}

Be more social online. In the past few years, the IOA has invested in building up its social media presence. We encourage our members to take full advantage of this and share in discussions, and communicate openly with other community members online. The IOA has a growing presence on Twitter, Facebook, Instagram and LinkedIn and operates several informal discussion groups that facilitate the exchange of ideas and opinions.

Talking and inﬂ uencing politics. The IOA plays an active role in speaking to politicians and inﬂ uencers about the role that acousticians play in all aspects of society and ensuring that acoustics is being properly addressed when it comes to the shaping of government policy.

Jobs. The IOA is focused on helping acousticians ﬁ nd and secure their next job, and we regularly advertise job openings in acoustics in our newsletter and on our website. Recently, the IOA has been oﬀ ering

Below: The online Rayleigh Lecture

Bottom: Latest social and quiz

Literature and videos. The IOA regularly produces a range of dedicated publications including our bi-monthly Acoustics Bulletin, along with the proceedings that are presented at our diverse selection of acoustics events. You can check out the IOA Library for previous documents, and if you’re looking for

Making a diﬀ erence. As an IOA member, you’ll have access to our various groups, branches and committees, as well as the opportunity to also shape the IOA’s future by becoming a part of the IOA Council if you want to get more involved. To ﬁ nd out more about how you can be more involved, get in touch.

ACOUSTICS 2020 SOCIAL & QUIZ | hosted by EARLY CAREERS GROUP

There’s even more We hold regular meetings each month, the IOA provides industry updates, we publish news announcements, blog postings, distribute a monthly newsletter and partake in all kinds of discussions around acoustics. There’s plenty of opportunity to engage with what’s going on – even during a lockdown. We always like to hear directly from our members and welcome your comments on the IOA and what ‘s being planned. Tell us what you like the most about your IOA membership, and what you like us to improve, as we’re always open to receiving your feedback which helps to shape the Institute. You can call us or email us: ioa@ioa.org.uk

‘tp Poti Titec omycon stay onsnaa nto

| pacar al note “Acoustics

fect Pec

ACOUSTICS BULLETIN MARCH / APRIL 2021 17

INSTITUTE AFFAIRS

Early Careers Group – further education in the time of a pandemic

Institute of Acoustics

For many, the pandemic has been an ideal opportunity to bolster their education and learn new skills. For others, furloughs and lockdowns put the brakes on starting a degree or diploma. What options are there for anyone interested in developing their skills and career?

a ee

By Tomasz Galikowski

Entry Educational Pathways

BEng/BSc/MEng

he IOA Early Careers Group invited leading educational organisations to attend a webinar on 8 February to ﬁ nd out what courses and ﬁ nancial options are available.

MSc

I O A Diploma

IOA Education and Learning Working Group Professor Chris Barlow, Chair of the Group, provided a summary of educational pathways into acoustics, career development routes for early career acousticians, ways of keeping current when on furlough or in between jobs, and funding options. There is a range of webinars and specialist technical training available from manufacturers, educational providers and some universities, The UKAN+ website provides a useful depository and links to relevant webinars. The IOA is developing an enhanced online CPD oﬀ er along with new certiﬁ ed and advanced courses on topics including soundscapes. Transferable and professional skills, such as report writing, project costing and marketing are also important and will form part of the IOA CPD range. Further qualiﬁ cations such as MSc or PhD could also be considered. There are currently three undergraduate acoustic degrees, six degrees at masters level and the IOA Diploma (currently oﬀ ered by six institutions).

Funding options summary • generally, it is possible to spread the payment over a period of time – subject to each institution; • advanced learner loan – aimed at those leaving school, however, unsuitable for those with undergraduate degrees; • student loans are available for masters degrees although paid back in parallel with an undergraduate loan; • IOA bursary is a great choice for shorter courses, it allows for up to 50% towards course fees – check the IOA website for eligibility and more information; • research funding options can be found on the UKAN and jobs. ac.uk websites, and through specialist organisations (e.g. Digital Music Research).

There are also several options aimed at technician level, particularly for those moving within the industry, such as: Certiﬁ cate of Competence (COC) courses oﬀ ered (i.e. Environmental Noise Measurement and Certiﬁ cate of Proﬁ ciency in Anti-Social Behaviour). Acoustics apprenticeships are aimed primarily at school leavers but are applicable to anyone thinking about a career change. An apprenticeship allows employees to work while learning, with the training paid for by the government via the apprenticeship levy, up to 100% in some cases. Completing it allows apprentices to apply for AMIOA status. A new HNC Apprenticeship in Acoustics will run from September 2021 at London South Bank University.

18 ACOUSTICS BULLETIN MARCH / APRIL 2021

Institute of Sound and Vibration Research (ISVR), University of Southampton Dr Nikhil Mistry summarised various courses available at the ISVR, which include: • BEng/MEng Acoustical Engineering; and • MSc Sound and Vibration. The ‘advanced course’ – a short course taught by experts – is available to those who want to brush up their skills in aeroacoustics or noise control. There are no fee instalment options at ISVR but individual cases will be considered. The ISVR will be oﬀ ering free Jupyter-based notebook tutorials on fundamentals of acoustics. Free seminars are available on various topics and can be accessed by emailing isvr-spah@soton.ac.uk Learn more at https://www. southampton.ac.uk/engineering/ research/centres/isvr.page

Networking helps to keep up-to-date with current information, for example, attending IOA branch meetings or online member forums and conferences. Social media can be helpful and it would be beneﬁ cial to get involved with UKAN+.

to study individual, specialist modules separately. The IOA is preparing a new course on report writing aimed at practitioners to include designing and structuring a technical report. This will be based on two days in class and a one-day workshop. Learn more about the IOA Diploma at https://www.ioa.org.uk/diploma- acoustics-and-noise-control Learn more about chartered engineer registration through the IOA at: https://www.ioa.org.uk/ engineering

IOA Diploma Professor Keith Attenborough presented an overview of the IOA Diploma including recent updates, opportunities for Diploma holders and fee options. This vocational course is intended to provide suﬃ cient specialised academic training to satisfy the educational requirements for corporate membership of the IOA and is delivered by three centres and three tutored distance learning centres. IOA Diploma comprises three compulsory modules: principles of acoustics, laboratory, and a project, plus two chosen from: • building acoustics; • environmental noise; • noise and vibration control engineering; and • regulation and assessment. Candidates not already working in the ﬁ eld, can use the Diploma to change their careers; it gives access to MSc degree courses and can be used towards chartered engineer registration (you would need three merits to be considered and you would also need an accredited relevant subject at undergraduate level). Graduates can then apply for AMIOA status. Fees for the Diploma can be made in full or in up to 11 instalments. It is also possible

University of Derby Dr John Pritchard presented the current oﬀ er from Derby University, including the courses currently available: • IOA COC in Workplace Noise Risk Assessment and in Environment Noise Measurements; • IOA Diploma in Acoustics and Noise Control; and • MSc Applied Acoustics (top up). The MSc is a top up course following completion of the IOA Diploma. The degree is designed to allow completion in one year whilst in full-time employment and the project part of the course can be work placed. Teaching staﬀ include full-time academics and practitioners and because of current COVID restrictions, teaching takes place online and students can complete practical modules in a two-day period on campus. Learn more at: https://www. derby.ac.uk/postgraduate/ geology-courses/applied- acoustics-msc/

Leeds Beckett University Leeds Beckett University was represented by Steve Mole, course leader for acoustics. They teach the IOA Diploma and associated MSc top-up option which at this university, is not a stand-alone course. The top-up comprises two modules (research methods and dissertation) which need to be completed on a part-time basis over a year. Face-to-face research lab classes were available until December 2020 and it is expected to be the same this year. Other classes are taught online. All teaching staﬀ are practitioners. The fee for the MSc can be paid in instalments and there is a 10% alumni discount. Learn more at https://www. leedsbeckett.ac.uk/courses P20

ACOUSTICS BULLETIN MARCH / APRIL 2021 19

INSTITUTE AFFAIRS

London South Bank University (LSBU) Professor Stephen Dance gave a presentation on teaching acoustics under COVID conditions. LSBU oﬀ ers an MSc course in Environmental and Architectural Acoustics. This course is nearly all practical, and cannot be delivered in a lab because of COVID restrictions, so teaching was moved online with lectures either delivered via communications platforms or pre-recorded and supplemented with Q&A sessions. In order to deliver the practical part of the course, a combination of 12 pre-recorded experiments and a ‘lab in a box’ was developed, to allow students to carry out a range of live experiments safely at home supervised by the lecturer via remote link. The software part of the lab in a box included a VPN, environmental and architectural acoustic modelling, a programming platform and a measurement system. The hardware was shipped to the students across the world, comprising an external audio card, an omni-directional microphone, a battery-operated speaker, a Class 2 calibrator, and miscellaneous items such as a tuning fork, a digital metronome and cables. As a back-up, a sound level meter app for a mobile phone was used. The cost of each box was £250. The course received excellent student feedback.

The lab in a box method and recorded sessions can also be used for apprenticeships, future learning and in schools. Learn more at https://www. lsbu.ac.uk/study/course-ﬁ nder/ environmental-architectural- acoustics-msc

University of Liverpool The Acoustic Research Unit (ARU) focuses on research and does not oﬀ er taught courses. Professor Carl Hopkins outlined the beneﬁ ts for undertaking postgraduate research study including gaining expertise on a speciﬁ c topic and establishing yourself as an expert. University of Liverpool oﬀ ers two postgraduate courses: • Master of Philosophy – suits employers as it focuses less on ‘novelty’ and allows upskilling or developing capability; and • Doctor of Philosophy – focuses on making an original contribution. Research can be self-funded, paid for by industry, scholarships, or by current employer. An example of a recent MPhil project is: ‘Vibroacoustic modelling of a dowelled-joist timber ﬂ oor using ﬁ nite element methods’. A recent PhD project was ‘Detection of trapped survivors in collapsed reinforced concrete buildings using structure-borne sound transmission’. Learn more at https://www. liverpool.ac.uk/architecture/ research/acoustics-research-unit/ about/

University of Salford Professor Bill Davies introduced topics that can be studied at University of Salford. All of them can be done either as part of taught courses (MSc) or as research (PhD): • vibro-acoustics; • structural dynamics; • psychoacoustics, soundscapes, spatial audio and room acoustics; • acoustic metamaterials (e.g. acoustics ‘black holes’); • drone noise; • architectural acoustics; • virtual and augmented reality; • ‘neuro-acoustics’ – using brainwaves to control sound; • computational acoustics – development of simulation algorithms; • bioacoustics; • archeo-acoustics; and • spatial audio. There are two taught masters (MSc Audio Acoustics and MSc Environmental Acoustics), research masters and PhD, which can be taken as full time/part time and either as distance learning or residential. Learn more at https://hub.salford. ac.uk/sirc-acoustics/

20 ACOUSTICS BULLETIN MARCH / APRIL 2021

Sound Masking

from aet.gb ltd

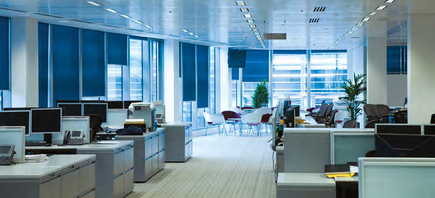

Open plan offices benefit from Sound Masking

mM bill TT Na | ui

Cellular offices achieve better speech privacy with Sound Masking

Sound Masking is a cost effective solution to the problem of improving speech privacy in today’s modern office environment. Best installed during office fit out but often installed as retrofit, Sound Masking from AET has improved the office environment for many international companies throughout Europe over the last 20 years.

An investment in increasing privacy of speech is certainly cost effective, with Sound Masking one of the easiest ways of achieving this aim. Sound Masking systems along with acoustic panels and acoustic door seals are increasingly used to achieve the desired level of privacy by a number of our major clients including: • Vodafone World HQ • Procter & Gamble • Swiss Re • Mobil Exxon HQ • Elizabeth Arden • Barclays Bank • Freshfields • KPMG • PWC • BP

In today’s office speech privacy becomes a key aim and open plan offices can suffer from two speech problems: • Other people’s conversations can be an irritating distraction • Confidential conversations can be almost impossible to conduct

Similar problems also exist in cellular offices. Apart from noise breakthrough via partitions, flanking over, under and around them, other problem areas include light fixtures, air conditioning systems and services trunking. Sound masking compensates for these problems.

Sound Masking is now available with a host of extras including: • PA, either all call or zone by zone call • Dual level options for audio visual room etc • Automatic ramping to conserve energy and produce profiled masking • Fault reporting • Automated amplifier changeover

www.aet.co.uk

AET.GB Ltd., 82, Basepoint, Andersons Road, Southampton, Hampshire SO14 5FE Tel: 0044 (0)8453 700 400 sales@aet.co.uk

Sound Masking is also known as sound conditioning or white noise systems

INSTITUTE AFFAIRS

Electro-Acoustics Group taking it up a level at Reproduced Sound 2020

The 36th annual Reproduced Sound conference, organised by the IOA’s Electro-Acoustics Group (EAG), took place online from 17-19 November, 2020. The conference represented the cutting edge of modern audio and acoustics in an informal environment that allowed consultants, manufacturers, contractors, end users, academics and students to mingle and share insights and information.

By Adam Hill

rganisation of the conference was led by EAG Chair, Keith Holland (ISVR, University of Southampton), supported by the 11 committee members and IOA’s Linda Canty. Complete online audio-visual support was provided by EAG committee members, John Taylor (d&b audiotechnik) and Ludovico Ausiello (Solent University), with support from student members, Sebastian Duran and Panos Tsagkarakis. d&b audiotechnik have generously provided technical support for Reproduced Sound for many years, to the great beneﬁ t of the conference. Due to the ongoing pandemic, the conference was held virtually over three consecutive afternoons. The delegates numbered nearly 100, representing a good balance between industry and academia, with participants joining the conference from across the globe.

Keith welcomed everyone to the ﬁ rst ever virtual Reproduced Sound, hoping that despite everyone being remote, the conference would still achieve the characteristic friendliness that Reproduced Sound is known for, allowing easy access to a wide and diverse community.

60 degrees as well as bandwidth and beamwidth achieved. Results pointed towards clear design considerations for constant directivity with minimal sidelobes. Questions from the audience focused primarily on the model’s conﬁ guration, oﬀ ering suggestions for further study.

Session 1 – Loudspeakers (Chair, Glenn Leembruggen)

Inﬁ nite waveguide termination by hybrid ﬁ nite element/ series solution The session continued with a paper from regular Reproduced Sound contributor, Patrick Macey from PACSYS. Patrick provided a thorough treatment of the underlying mathematics and modelling procedure adopted for this study, with several animated demonstrations to help the audience visualise the issues surrounding problematic terminations in models. The most revealing issues were related to cross mode problems due to an improper termination. A number of questions came from the audience, asking about the relationship between the simulation and reality. Patrick was able to clearly explain the relationship, emphasising the modelling method’s accuracy.

Right: EAG committee member, Glenn Leembruggen

Eﬀ ect of geometry on cone-driven midrange horns and phase plugs The ﬁ rst paper of the conference was presented by Lewis MacDonald from the University of Salford, detailing research carried out as part of his undergraduate dissertation under the supervision of Jon Hargreaves. Lewis presented a methodical parameterised study on cone-driven midrange horns and phase plugs, where he speciﬁ cally inspected the eﬀ ect of phase plug radius, phase plug length, phase plug curvature, and horn geometry. This was done using FEM alongside a lumped parameter electromechanical model. Performance metrics included average intensity over

Conference – day one Prior to the oﬃ cial launch of Reproduced Sound 2020, EAG committee member, John Taylor, introduced the technical team for the conference, explaining to all delegates the logistics for the event, including how to ask questions for each presentation (via Mentimeter) and how to access the virtual break room and lobby (via Jitsi). He then turned the virtual ﬂ oor over to Keith Holland.

Advances in acoustic instrument measurements and system design The ﬁ nal paper of the session was delivered by Ludovico Ausiello from Solent University. This was a follow-on paper from Ludo’s

P24

22 ACOUSTICS BULLETIN MARCH / APRIL 2021

Cloud-based Monitoring High quality, with exceptional value for money

‘SWARM Vibration Monitor Independently tested: for compliance with DIN 45669-42010 Y. Simultaneous and continuous tri-axial VDV and PPV VY Effortless plug and play deployment with auto axis alignment Integrated 4G and WiFi communications eoaring SH nce Y GS positioning and time-synchronisation EEMC MONITORS SALES | SUPPORT | CALIBRATION Honeycomb Platform Y Intuitive cloud-based platform, 24/7 access to data, remote configuration and SWARM management Y Email and SMS alerts ‘When limits exceeded Y Automated, effortless reporting to CSV & PDF Y Fully User Customisable Y APlintegration Y Simple site hardware, ightweight, easy to instal and maintain Y. Data access and remote management using Honeycomb cloud platform V MetOne ES:642 MCerts Compliant industry standard sensor pL UK & ROI Sales, Support & Calibration www.eeme-monitors.co.uk info onitors. co.uk | 0208

Sole UK & ROI Distributors for

innovative monitoring solutions UK stock of SWARM vibration monitors and accessories, enabling rapid project delivery

Full technical and after-sales product support

OMNID. TS

Free virtual training and software updates UK SWARM calibration facility with express turnaround

with express turnaround

Honeycomb integrated, MCerts certified particulate (PM 10 ) monitoring solution

INSTITUTE AFFAIRS

paper at Reproduced Sound 2019, concentrating on furthering the understanding of acoustic instrument design through practical measurement and analysis methods. This work focused on the optimisation of an acoustic guitar’s magnitude response, through a parameterised study (performed by carefully and systematically deconstructing an actual guitar). Areas under inspection included string tension, presence of varnish, closing of the body, shaping and position of internal braces, and use of additional braces on the soundboard and back. Through Ludo’s analysis, the guitar optimised to exhibit a measurably ﬂ atter magnitude response. Many questions came from the audience, indicating considerable interest in the topic. Ludo’s enthusiasm on the subject was clear, which made for a very engaging presentation. (See Ludo’s technical article on page 30.)

must be taken before deciding to limit any low frequency content, since this would be audible. This could likely be addressed through use of a multiband compressor.

advantage for the CNN, however, in that it was limited to guesses between 0.4-1.0 seconds, while the experts could guess any number. Dan usefully identiﬁ ed shortcomings such as this within the test and oﬀ ered suggestions for further work. The audience had many questions for Dan, with some sceptical about how useful this could be for more general spaces (the study was limited to classrooms), but the interest in the topic was nevertheless high.

Energy-Time Curve (ETC) in electro-acoustic measurement and analysis Next on the agenda was a paper from James Love and David Gilﬁ llan of Gilﬁ llan Soundwork in Australia. James provided a clear overview of energy-time curves (ETC) including how they are mathematically derived from an impulse response measurement. What quickly became clear in this study was that spectral windowing was essential to get right when using ETCs, otherwise a considerable amount of information could be lost (such as with the use of a Blackmann-Harris window). With proper windowing, however, detailed acoustic information can be extracted from measurements such as low frequency reﬂ ection arrivals, identiﬁ cation of closely spaced peaks, and a reduction in time domain aliasing. The signal processing was nicely demonstrated using impulse response measurements from real spaces.

Session 3 – System design and modelling

Right: EAG Chair, Keith Holland

Session 2 – Measurement 1 (Chair, Paul Malpas) Temporal structure of spectral levels within pre-recorded material The ﬁ rst conference session on measurement began with a paper from Glenn Leembruggen from Acoustic Directions, Australia, covering a detailed analysis of spectral content for a variety of pre-recorded signals. The data showed material dependent crest factors and spectral content. Unsurprisingly, speech was shown to have the highest crest factor, with metal music exhibiting the lowest. While classical music was relatively consistent across octave bands, jazz music was much less consistent. Ultimately, what this analysis pointed towards was the possibility to save resources on power ampliﬁ er requirements if the intended programme material is known. Glenn mentioned, however, that there isn’t much published on the audibility of clipping, which should be investigated before committing to a system design process that essentially ignores the peak signal requirements (due to a high crest factor). The presentation prompted numerous questions from the audience. Session Chair, Paul Malpas, was quick to point out that such a system design approach isn’t appropriate for hi-ﬁ systems as they require accurate reproduction of peak content. Glenn added that even outside of hi-ﬁ systems, care

(Chair, Keith Holland) Modern advances in the meeting room ecosystem The ﬁ rst paper in the system design and modelling session was from John Ellis and Andrew Francis of Shure UK. They presented a thorough overview of the history of meeting room audio-visual technology, leading to the current state of the art, with examples provided in the form of current products oﬀ ered by Shure. They revealed that past surveys have indicated that most meeting room technology frustrations are related to audio, but that current technology such as networked audio and auto mixing can help to prevent many issues. They were able to give an example very close to home – the IOA’s new headquarters in Milton Keynes. The IOA’s former meeting room AV system was the source of much frustration. In the new facilities, however, care was taken to implement good acoustic and audio-visual design, which EAG Chair, Keith Holland, was quick to conﬁ rm has resulted in much more eﬀ ective meetings. During Q&A it was emphasised that such systems are still reliant on good room acoustics.

Use of artiﬁ cial intelligence in room acoustics prediction using a photograph The ﬁ nal paper of the session was presented by Dan Milne from Solent University and was based on his undergraduate research under the supervision of Lee Davison and Ludovico Ausiello. The research looked into whether there was a reliable method of extracting acoustic information of a space from a 2D photograph. This was explored by utilising a convolutional neural network (CNN) with a focus on estimation of RT60. The CNN was trained with data from 38 classrooms, comprising 24 photographs per room. RT60 measurements were taken in each room using a balloon burst with RT60 at 500 Hz used to characterise the room in this instance. After the CNN training was complete, tests were carried out where the photographs were sent to acoustics experts asking them to predict the RT60 of the room, while the same photographs were sent through the CNN to do the same. The CNN outperformed the experts, where the experts tended to overestimate RT60. There was a potentially unfair

Understanding modern ampliﬁ cation systems The next paper was presented by Alberto Fueyo Gallego from AMS Acoustics. As with

24 ACOUSTICS BULLETIN MARCH / APRIL 2021

Glenn Leembruggen’s paper from the previous session, Alberto’s research focused on power ampliﬁ er requirements primarily for the purpose of emergency sound systems. As with Glenn, he suggested that systems may not need so much power due to the high crest factor of speech. He emphasised that clipping and compression don’t seem to signiﬁ cantly aﬀ ect STI, hence designing systems to accurately reproduce sound based on peak levels may be overkill. Alberto’s presentation prompted supportive comments, suggesting the need for further work in the industry to consider such ideas, including possible work within standards.

has seen widespread adoption of neural networks for various purposes over the past few years, most projects utilise these systems as black boxes, where details of speciﬁ c parameters during the training process are unknown. To illustrate the usefulness of having sight of these parameters, Vlad utilised multilayer perceptron (MLP) to determine the hidden layer variables. Spectral diﬀ erence detection was used an as example application, whereby the spectra under analysis contained magnitude peaks spaced too closely to accurately resolve with conventional analysis techniques. Through this process, Vlad was able to demonstrate how the neural network can be optimised when the often-hidden variables are revealed. Questions from the audience focused on potential applications for this neural network optimisation approach, while other commented that it was nice to see such a topic presented in an accessible manner to non-experts in the audience.

the practicality of the approach, given that the optimisation was based on a single measurement location, despite having a wide audience area.

Portable synthesizer on embedded system The session on signal processing was concluded with a presentation by João Davi de Campos, which described his undergraduate research under the supervision on William D’Andrea Fonseca at the Federal University of Santa Maria in Brazil. After giving the audience an overview on the history of analogue and digital synthesizers, João went on to describe the synthesizer implementation he developed using an MDI keyboard and a Raspberry Pi 3B+, which was running Zynthian software (an open source synthesizer platform). Measurement examples from the device’s output were shown along with an impromptu live demo during the Q&A.

An archaeoacoustics investigation of the Beulieu Abbey The ﬁ rst day of the conference was concluded with a presentation by Sebastian Duran, Martyn Chambers, and Ioannis Kanellopoulos of Solent University, detailing their research which was under the supervision of Chris Barlow. The paper focused on work to achieve an accurate auralization of Beulieu Abbey, which was destroyed nearly 500 years ago. The modelling was carried out in CATT Acoustic, where the sound sources were modelled to be a priest giving a sermon and monks doing chants. In addition, auralizations and data on STI and clarity were presented, where it was found that the acoustics of the Abbey didn’t support speech but would be appropriate for the chants. This aligns with the fact that intelligibility was less important before Vatican II, when mass was conducted in Latin. The students were able to ﬁ eld questions from the audience, which focused on aspects of the acoustic model’s design.

Session 5 – Measurement 2 (Chair, Adam Hill) Development and use of a low cost acoustic ﬂ ow resistance meter The second measurement session of the conference began with a presentation from Camille Hanrahan- Tan of Acoustic Directions, Australia. Camille detailed her work on developing and testing a low cost acoustic ﬂ ow resistance meter, which cost approximately one-tenth of a similar commercially available device. She gave ample evidence of the device’s performance, with example measurements from a variety of materials. The measurements were in good agreement with predictions and any anomalies were clearly explained. Several questions were received from the audience, focusing on material properties and methods to convert between various metrics. Overall, the impression was a positive one, where it was encouraging to see developments to make specialist equipment more accessible within the industry.

Automated delay estimation and time alignment in a reﬂ ective environment The next paper in the signal processing session was from Reproduced Sound regular, Ambrose Thompson from Martin Audio and Alexander Holt from the University of Surrey. They presented their work on time- alignment of sound reinforcement systems in reﬂ ective environments. They described an optimisation routine that they developed to determine the optimal delay parameters to achieve an ideal magnitude response (characterised by summing all available magnitude responses without phase information). As the system contained a single variable, an exhaustive search was possible. This was shown to be resilient in the face of room modes and strong reﬂ ections. Questions focused on

Below: Reproduced Sound technical crew (clockwise from top left: John Taylor, Ludo Ausiello, Sebastian Duran, Panos Tsagkarakis)

Conference – day two Session 4 – Signal processing (Chair, Ludovico Ausiello) Analysis of neural network architectures for audio signal processing Day two of Reproduced Sound commenced with a paper from Vlad Paul of ISVR, University of Southampton, with a focus on his research on neural network architectures under the supervision of Philip Nelson. Vlad pointed out that while the research community

Suitability of hi-ﬁ loudspeakers measuring reverberation time in domestic rooms The session continued with a paper from Chris Adair of Adair Acoustic Design, which focused on using typical hi-ﬁ loudspeakers to measure reverberation times in domestic environments.

P26

ACOUSTICS BULLETIN MARCH / APRIL 2021 25

INSTITUTE AFFAIRS

Chris emphasised the balance between acoustics and reality, primarily questioning whether we need to measure all spaces with dodecahedral loudspeakers. Considering home theatre systems, why not measure with the in-situ sound system? He noted that there is no requirement within ISO 338-2 for an omnidirectional speaker for surveying and engineering applications. Comparisons of results between conventional and dodecahedral speakers were given, with good agreement at high frequencies and a small amount of variation at low frequencies. Chris’s experiment shows that the hi-ﬁ speakers could give suﬃ cient accuracy for RT60 measurements in small rooms, with measurement errors all falling below the just noticeable diﬀ erence of 10%. The audience responded with many questions about future applications for this, indicating broad support for this concept.

kicked oﬀ by Mark Dring and Bruce Wiggins from the University of Derby who presented their work on WHAM – Webcam head-tracked ambisonics. This research was necessitated by the national lockdown in March, where there was no access to their research group’s specialist facilities. To overcome this, a workaround was developed to allow for head- tracked ambisonics to be available to anyone with a webcam and a pair of headphones, where the webcam was used to track head movements alongside presentation of binaural room impulse responses (BRIR), where the software included the necessary support for asymmetrical ﬁ ltering. In this ﬁ rst instance, only horizontal head rotations were considered (where the head was rotated within the ambisonics system, not the virtual room). Live demos were given via a purpose-built web tool hosted at brucewiggins.co.uk/WHAM . Due to the current capabilities of web-based audio, the system was limited to 7th order ambisonics (although Bruce noted that this restriction may be eased soon). The demo gave clear evidence that the webcam-based tracking was eﬀ ective, giving high- quality ambisonics-based sound reproduction over headphones and (critically) allowing subjective evaluations to continue despite the current restrictions.

Determining the source of coherence reduction using playback level of M-Noise The ﬁ nal paper of this session on measurement was from Roger Schwenke of Meyer Sound, USA, where he presented a hands-on look into how sources of audio signal coherence degradation can be determined with M-Noise. Signal coherence is often aﬀ ected by background noise, distortion, and the acoustics of a venue. With the underlying theory explained, Roger turned to a live demo of M-Noise being used to measure coherence of a simulated system. The results were systematically analysed while adjusting key parameters of the simulated system to show the tell- tale signs of each form of coherence reduction. Overall, this presented a useful toolbox for system engineers to use while on-site tuning sound systems to avoid incorrect analysis of data. Session chair, Adam Hill, noted that the paper session literally stretched around the globe, starting in Australia, stopping oﬀ in the UK, and concluding in California.

Audio signal statistics revisited: A homomorphic separation approach Building on an emerging theme of music and speech signal statistical analysis at this year’s conference, Jamie Angus-Whiteoak from the University of Salford presented her paper looking into a homomorphic separation approach to audio signal analysis. The issue at hand was that signals that have been combined in a multiplicative manner can’t be separated, since original spectral content may not be present as distinct content. To overcome this, Jamie explained how the combined signals can be transformed through an invertible function which converts the signal to an additively combined signal, allowing for straightforward separation. As an example, Jamie applied the process to a speech signal, which in turn conﬁ rmed the ﬁ ndings of some previous papers in the conference, showing that speech and music signals aren’t gaussian, where these signals spend most time at lower levels – adding weight to the argument for lower power ampliﬁ cation requirements for eﬃ cient (non hi-ﬁ ) systems. Questions from the audience focused on the signal analysis technique’s applications within dynamic processing such as compressors, limiters and even wireless audio systems.

Electro-Acoustics Group AGM The AGM of the Electro-Acoustics Group was held prior to the close of day two of the conference. The meeting was chaired by Keith Holland and was attended by 25 delegates, including eight EAG committee members. Keith delivered the chairman’s report, describing all activities of the group over the past year, the central focus being the organisation of this conference. It was noted that this year required a very steep learning curve in order to adjust Reproduced Sound to operate eﬀ ectively in an online space. Notably, Keith highlighted the ongoing eﬀ orts of John Taylor and Ludo Ausiello in overcoming the technological challenges this has presented and permitting the delivery a very enjoyable and successful conference. It was agreed that many lessons have been learned over the course of this year and the committee will consider what to roll forward to beneﬁ t future Reproduced Sound conferences.

Rendering binaural signals for moving sources The second and ﬁ nal paper of this session on virtual audio was presented by a trio consisting of Lucas Gomes, William D’Andrea Fonseca, Davi Carvalho, all from the Federal University of Santa Maria, Brazil. The work focuses on accurately rendering binaural signals for moving sources. Critically, the Doppler eﬀ ect had to be considered in these situations, which was implemented within an image source acoustical model. Interpolation was required in this case to account for the variable time of arrival of successive samples from moving sources.

WHAM: WEBCAM HEAD- TRACKED AMBISONICS

WHAM: WEBCAM HEAD- TRACKED AMBISONICS.

Below: Paper from Mark Dring and Bruce Wiggins P28

Conference – day three Session 6 – Virtual audio (Chair, Jamie Angus) WHAM: Webcam head-tracked ambisonics The ﬁ nal day of this year’s Reproduced Sound conference was

26 ACOUSTICS BULLETIN MARCH / APRIL 2021

7 \ 4 / eS

A trusted history.

A digital future.

We were Armstrong. Now we are Zentia.

The same knowhow. The same experience. Now with a new, digital-ﬁ rst mindset.

From beginning to end; concept to completion; A to Z. Welcome to Zentia.

i |

zentia.com

#AtoZentia

INSTITUTE AFFAIRS

With the moving source model in place, an investigation was carried out looking into the perception of the rendered sound sources in terms of the perception of speed, distance, position, realism, and number of simultaneous sources. It was found that participants were able to correctly identify relative distance and speed, but further work was required to achieve better externalisation over headphones. A key question from the audience revealed that the ground reﬂ ection was omitted from the model, where it was agreed that this should be included as part of further work.

live sound engineering practice. A dataset was used encompassing roughly ﬁ ve years of touring and festival dates (130 in total) from a popular UK-based band. For each event, one minute equivalent continuous sound levels were recorded with A and C weighting, allowing for later conversion to any required measurement time window greater than one minute. A number of statistically signiﬁ cant points were drawn from the data. Room acoustics play an important role in terms of overall sound level in the audience. Venues with poor acoustics resulted in louder shows. Additionally, small venues were louder than large venues, since loud stage levels are more signiﬁ cant within the audience area in small venues. Events with an LAeq limit in place were roughly 2 dB quieter overall, but this was only for events with limits at or below 101 dBA (indicating the engineer’s natural mixing level to be around 100 dBA). In terms of the time measurement window, it was clear that short times (less than 10 minutes) reduced the dynamic range of the event, due to the engineer having to constantly adjust to maintain compliance with the limit, reducing the possibility for strong dynamics in the reinforced music. In the few cases where an LCeq limit was in place, there were clear issues with the engineer struggling to maintain compliance due to arbitrarily deﬁ ned limits.

this points to a need for updates to the existing guidance documents (work which is currently underway). Many questions came from the audience, primarily focusing on the issue surrounding low-frequency limits. It was clear that the regulations are lagging reality.

The Sound of SoFi – amplifying the experience The ﬁ nal paper of Reproduced Sound 2020 was presented by Jim Burdette (JBL/Harman), Kevin Day (WJHW), and Demetrius Palavos (Pro Media) on the sound system design for the new SoFi Stadium in Los Angeles, USA. The overarching design criteria for the sound system was to ﬁ t most of the sound system elements into the scoreboard, the largest of its type in the world, which was ﬂ own centrally above the playing ﬁ eld. This approach went against the current trend of implementing distributed systems in such venues. Kevin Day took the audience through development and testing of the system in EASE, describing key considerations along the way. All presenters made it clear that it was critical to work closely with other departments to make sure nothing interfered with the sound system’s operation once it was installed (such as using acoustic mesh to obscure the speakers within the scoreboard to not aﬀ ect them acoustically). The presentation generated many questions and comments from the audience, unsurprisingly, due to the large and unique nature of the project.

Session 7 – Case studies and regulation (Chair, Mark Bailey) The acoustic design of the Qingdao Oriental Movie Metropolis Grand Theatre The ﬁ nal session began with a presentation by Shenzhi Su from CSP Acoustics, where she walked the audience through the electroacoustic design of the Qingdao Oriental Movie Metropolis Grand Theatre in China. The 1,970-seat theatre was speciﬁ cally designed to host a ﬁ lm festival but would have to be ﬂ exible to accommodate a range of diﬀ erent events after the festival. Interestingly, it was stated that the theatre is the only one in the world with a Dolby Atmos system as well as an electronic room acoustic enhancement system. During the design stages of the theatre, it was determined that the venue’s use would be as follows: movie projection (80% of all events), award ceremonies, and symphonic performances, each requiring a diﬀ erent acoustic. The venue’s construction was explained, with a particular focus on the incorporation of the necessary absorption and diﬀ usion. The theatre was initially evaluated by twenty acousticians, sound engineers, and musicians. All groups rated the sound quality as excellent with natural sounding reverberation. Quite a few questions came from the audience, indicating a good deal of interest in the project.

UK and international guidance for the control of noise from outdoor events Next was an overview of noise regulations in the UK and internationally, presented by Peter Wheeler from Vanguardia. Peter presented a detailed comparison between sound level regulations across the UK, with clear evidence of confusion, either through misinterpretation of the UK’s Noise Council Code of Practice on Environmental Noise Control at Concerts or basing limits on best practice and not from guidance documents. While there is clear evidence of the steady ride in low- frequency content within popular music, there are few regulations with low-frequency (LCeq) limits. Of the few areas with such limits, there is little agreement in speciﬁ c limits and applications, which agrees with the ﬁ ndings from Adam Hill and Jon Burton’s paper. Peter explained that

Conference close EAG chair, Keith Holland, closed the formal proceedings of Reproduced Sound 2020, by thanking all those who were involved with the organisation and running of the event as well as the delegates for attending. Keith speciﬁ cally thanked John Taylor and Ludo Ausiello, along with assistants Sebastian Duran and Panos Tsagkarakis, for developing and running the technical aspects of the conference, allowing for a smooth and engaging conference experience for all attendees and presenters. He also expressed thanks to the IOA’s Linda Canty for her continued support and guidance. With that, Keith formally closed the conference and expressed hope that we’d all be able to see each other in person for Reproduced Sound 2021.

Impact of sound level regulations on sound engineering practice The second paper of the session was jointly presented by Adam Hill and Jon Burton from the University of Derby. The work focused on a case study looking into the eﬀ ect of local sound level regulations on

28 ACOUSTICS BULLETIN MARCH / APRIL 2021

 

TECHNICAL CONTRIBUTION

COVER STORY

Quantitative measurements to enhance performance of acoustic musical instruments and improve manufacturing

This paper discusses how the sine-sweep measurement method, which has become a standard in room acoustics and loudspeaker testing, can also be used to gather reliable quantitative data representing the response and performance of acoustic musical instruments.

By L. Ausiello (Solent University, Southampton) corresponding author and V. Hockey (collaborator with Martin Guitar)

instruments ² ; such information can be used to implement end-of-line tests to improve manufacturing, or to provide designers with quantitative feedback when studying new bracing patterns or new geometries for soundboards, for example. In order to show how ready this method is, and how close its implementation is to the practice which has become a standard in loudspeaker design and testing, this paper analyses the frequency responses of an acoustic guitar being re-worked to assess the sensitivity limit of this measurement technique. In section two the principle of the sine-sweep method applied to musical instruments which was validated in ² is recapped, in section three the methodology of the experiments performed for this case study are illustrated, and in section four the results are presented and commented. Finally, in section ﬁ ve conclusions and foreseeable future development are discussed. P32

n the attempt to quantify the accuracy limit of the methodology, a complete instrument has been re-worked and all phases of the process have been measured before and after each modiﬁ cation step. This provided enough data to perform a sensitivity analysis of the proposed technique, and proved that the method is capable of capturing the inﬂ uence of the varnish being applied or removed from a soundboard, the presence or absence of structural reinforcing struts (braces), and the impact on the acoustic output of weight reduction and proﬁ le optimisation applied to the braces of the soundboard and of the back of the instrument. The ﬁ ndings suggest this approach is mature and ready to be used in combination with ﬁ nite element modelling simulations, computer aided machining, and additional manufacturing in order to achieve a desired frequency response for acoustic soundboards or panel loudspeakers.

This technology can potentially disrupt the musical instrument industry and maximise the use of resources that, at the moment, are exploited in an unsustainable way relying on traditional manufacturing.

Introduction Measurements are a key element of audio and acoustic research, architectural design and product development; a plethora of methods have been discovered, perfected or even forgotten in the past decades. In recent years, a speciﬁ c type of measurements, namely the sine-sweep technique ¹ , has gained popularity as a quick and accurate strategy to retrieve impulse responses, thus becoming a de-facto standard in ﬁ elds as diverse as room acoustics or loudspeaker design and manufacturing. This article aims to illustrate how this method can also be very eﬀ ective to gather quantitative data representing the acoustic response and performance of musical

30 ACOUSTICS BULLETIN MARCH / APRIL 2021

simulation case study How noisy is this gearbox design?

Building quieter transmission systems starts with designing quieter gearboxes. Noise, vibration and harshness (NVH) testing is an important part of the process, but you are not limited to conducting physical experiments. To improve gearbox designs well before the production stage, you can perform vibroacoustic analyses using simulation software.

learn more comsol.blog/NVH-simulation

The COMSOL Multiphysics® software is used for simulating designs, devices and processes in all fields of engineering, manufacturing and scientific research.

ian

TECHNICAL CONTRIBUTION

1. Quantitative measurement of acoustic instrument The sine-sweep method is generally used to retrieve the impulse response (IR) of linear time-invariant systems. To do so, the device under test (DUT) is stimulated with a signal of constant

amplitude containing all the frequency relevant to the analysis at hand, starting from the lowest and ending with the highest in an exponential progression. This can be shown with a picture of the time behaviour and the spectrogram of a sine-sweep test signal (Figure 1).

On the left-hand side of Figure 1, time is on the horizontal axis and the signal’s amplitude is on the vertical one; on the right-hand side of Figure 1, time is on the horizontal axis, frequency is on the vertical one, and the amplitude of the signal is colour-coded.

Below: Figure 1: Sine-sweep test signal; on the left, time domain representation, on the right the corresponding spectrogram

Sine Sweep - Input Signal

0.6

-40

0.4

-60

0.2

Frequency (kHz)

-80

Amplitude

-10

-0.2

-12

-0.4

-14

-0.6

5 10 15 20 25

0 5 10 15 20 25 30

Time [s]

The DUT reacts to the test signal by emitting an altered or ﬁ ltered version of the sine-sweep, as per Figure 2. What was a constant- amplitude time signal is now clearly varying in amplitude over time, suggesting the presences of resonances in the system which makes its response not ﬂ at.

Below: Figure 2: DUT response to the sine-sweep test signal. Note both the resonances of the DUT (vertical lines) and the harmonic distortion components in the spectrogram (exponential lines)

DUT Response - Recorded Signal

-40

0.6

0.4

-60

0.2

-80

Amplitude

Frequency (kHz)

-100

-0.2

-120

-0.4

-0.6

-140

0 5 10 15 20 25 30

Time [s]

5 10 15 20 25

Time [s]

32 ACOUSTICS BULLETIN MARCH / APRIL 2021

DUT Impulse Response - Recorded Signal

0.1

0.8

0.08

0.6

0.06

0.4

0.04

0.2

0.02

Amplitude

-0.2

-0.02

-0.4

-0.04

-0.6

-0.06

-0.8

-0.08

-1

-0.1

0 5 10 15 20 25 30 35 40 22 22.5 23 23.5 24 24.5 25 25.5 26

Time [s] Time [s]

As per ¹ , we can convolve the recorded output of the DUT with the ideal inverse ﬁ lter of the original sine-sweep, obtaining its impulse response (Figure 3). The largest component of the IR resulting from the convolution is the linear component of the response, while the smaller peaks before it, are harmonic distortion products ¹ . In our scenario we are interested in the linear component of the IRs. Traditional musical instruments such as pianos, acoustic and classical guitars are passive systems made from wood, metal, and glue (normally an aliphatic or organic one) ³ . We assume these systems are passive in the sense that the only energy they might store is contained in the materials they are made of or coming from permanent deformation imposed by other parts. This is the case of a guitar or a piano whose soundboards are under the tension of the strings, or under the tension of strings, wooden frame, and cast-iron frame respectively ⁴ . This means that when analysing the output of the DUT we assume that the only contributors to the non-linear distortion products are the power ampliﬁ er, the exciter, the microphone internal preamp, or the soundcard input/output circuitry. More details can be found in ² , ⁵ , ⁶ or by corresponding with the authors. It is common practice to use a digital audio workstation (DAW) as a source for the sine-sweep signals, thus connecting a PC to a power amp via a soundcard. The power ampliﬁ er is then connected to an 8-ohm exciter, as per Figure 4. The sensitivity analysis of the best position of the exciter has been carried on in ² , and

it showed that the most eﬃ cient way to inject energy in the system is to place the exciter on the bridge of the instrument. In essence, the exciter injects the sine-sweep signal into the soundboard of the guitar, which, being a linear time-invariant system, resonates according to its frequency response. The measurement microphone collects the acoustic output, and this signal is then sent back to DAW where it is recorded and convolved with the inverse ﬁ lter ¹ . Once the IR of the instrument is collected, fast fourier transform (FFT) can be used to analyse the data according to the task at hand. In literature, frequency analysis of measurements of guitars has been presented in both logarithmic and linear scale ² , ⁶ , ⁷ , but in this article data will be plotted in linear scale, due to the higher resolution at low frequency that this oﬀ ers. P34

Above: Figure 3: Output of the convolution between recorded output from DUT an ideal inverse ﬁ lter. Circled in grey the harmonic distortion products of the convolution process, in light blue the linear component of the IR

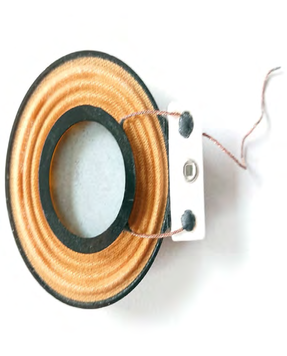

Right & below: Figure 4: A 25mm voice-coil exciter. The inner black ring is the bottom of the voice coil, which is attached to the soundboard, in yellow the spider and at the bottom the transducer’s terminals. On the right, the position of the exciter on the guitar’s bridge

we assume

frequency that

t this oﬀ ers.

ors to the

roducts are

e exciter,

al preamp,

t/output

al audio

a source

nals, thus

power amp via

wer ampliﬁ er is

8-ohm exciter,

ensitivity

——-

osition of the

ed on in

, and

ACOUSTICS BULLETIN MARCH / APRIL 2021 33

ACOUSTICS BULLETIN MARCH / APRIL 2021

TECHNICAL CONTRIBUTION

2. Methodology The ideal way to show the accuracy of the presented method and its readiness to be used in manufacturing would be to build a complete instrument (e.g., an acoustic guitar) from scratch, pairing each step of the making with acoustic measurements. Due to practical limitations this was not possible, so an alternative approach was used. A complete instrument was ﬁ rst measured in its original state and then sequentially re-worked to highlight several

diﬀ erent steps, although in reverse order with respect to a normal manufacturing process.

By inspecting the list of modiﬁ cations above we can see that it contains the last production steps of a guitar manufacturing process in reverse order. Steps from (4) to (9), and especially step (4), (5), and (6) are the ones mainly praised and debated among guitar builders and musicians for being the most relevant ones in determining the instrument ‘voice’ and quality ⁷ , ⁸ , ⁹ , ¹⁰ . Some authors like Gore and Gilet refer to some speciﬁ c frequency responses as being better than others and more desirable⁷, while others stress the fact that a direct correlation between frequency responses and players’ preference has not been found yet ⁸ . In fact, now that a direct measurement method is available, such knowledge is desirable; by collecting suﬃ cient IRs (and corresponding frequency response data), it is hoped that experiments to correlate diﬀ erent guitars’ responses and users’ preferences will be undertaken soon. For this research, the instrument being re-worked is a 000 body, 12-fret acoustic guitar with solid Sitka spruce soundboard, and solid mahogany back and sides, as per Figure 5. The soundcards used were a Motu 896HD and a Focusrite Scarlett 18i20, while all signal processing was done in Adobe Audition 3.0 using Aurora Plugins by Farina ¹¹ . The microphone used was an Earthworks Smaart M30, and the exciter was a 5 W, 8Ohm, ASK driver, with 25mm voice coil. As per [2], Blu Tack was used to attach the voice coil to the bridge of the guitar. The amount used was 2.5 grams, and it was kept clean and reused for all the measurements to minimise diﬀ erences due to changes in mass during the experiments. P36

Accordingly, the following building steps have been performed and measured: 1) Removal of strings to verify if the measurements can capture the impact of the strings’ tension on the soundboard, and corresponding response. 2) Removal of the varnish from the soundboard to measure the impact of polyurethane lacquer on the soundboard, and corresponding response. 3) Removal of the back from the guitar body to verify the absence of the Helmholtz resonator in the acoustic response. 4) Removal of one tone-bar from the set of braces forming the structural reinforcements of the soundboard to verify their impact on the frequency response. 5) Weight and proﬁ le optimisation of the bracing, and consequences on the response. 6) Gluing of an additional brace in a diﬀ erent position from the one removed on step (4). 7) Measurement of the frequency response of the removed (isolated) back. 8) Alteration on the bracing pattern of the back and new isolated response captured and compared. 9) Guitar body being closed again, and last response captured and compared.

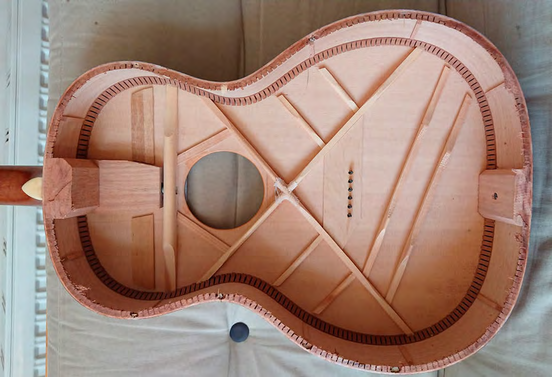

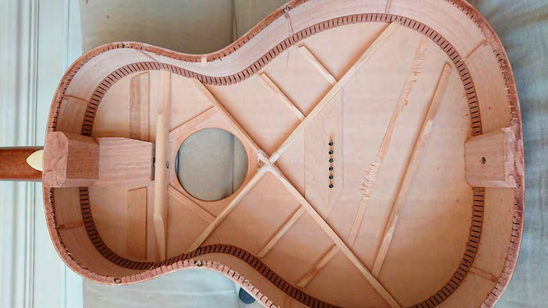

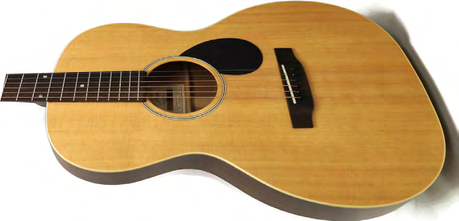

Left: Figure 5: 000 body, 12-fret guitar which has been re-worked and measured step-by-step

34 ACOUSTICS BULLETIN MARCH / APRIL 2021

•

TECHNICAL CONTRIBUTION

The reproduction chain was calibrated using a -6 dB LUFS 1kHz tone signal, sent to the exciter via a Primare i30 ampliﬁ er, which has a digitally controlled volume. The output of the amp was then checked to be 2.83V RMS with a Fluke 177 meter. This way the sine-sweep test signals were always 1 W nominal power for all the measurements. The gain structure of the recording chain was normalised to achieve a -1 dB LUFS on the ﬁ rst recording and corresponding convolution retrieving the ﬁ rst IR; this was done by setting to a ﬁ xed value the convolution gain in the Aurora plugins for Audition 3.0, as per Figure 6. After the ﬁ rst IR was processed, the normalisation gain was kept constant to oﬀ er an absolute reference for all the following measurements done before and after all the alterations steps described above. Calibration was also checked using a B&K Type 4231 calibrator with a 1/8” adapter on the M30 microphone.

Right: Figure 6: Normalisation gain setting was used to normalise the ﬁ rst collected IR, and then kept constant to enable absolute reference for all the following measurements

was positioned on the ﬂ oor and set at an angle of approx. 75 degrees, as per Figure 7. The measurements were performed in a domestic environment, and the IRs were checked to be free from spikes due to early reﬂ ections. A full test signal contained two consecutive sine-sweeps, with a start-frequency of 45Hz and an end-frequency of 8kHz. The duration of each sweep was set to 10s, while the silence between the two repetitions was set to 5s. Accordingly, the recorded output contained two sweeps, and the product of the convolution with the inverse ﬁ lter consisted in two consecutive IRs per each of the DUT tests being performed, still separated by 5s of silence. Using two repetitions of the test signal is good practice due to the possible presence of spikes which might occur at the beginning of the playback of the ﬁ rst sine-sweep. Analysing the second IR eliminates the risk of consequent artefacts in the spectral analysis, and it’s a simple but eﬀ ective habit to obtain reliable ‘real-life’ measurements ¹² . P38

The M30 microphone was placed 30cm on-axis in front of the 12th fret of the guitar. To reduce the impact of early reﬂ ections, the instrument

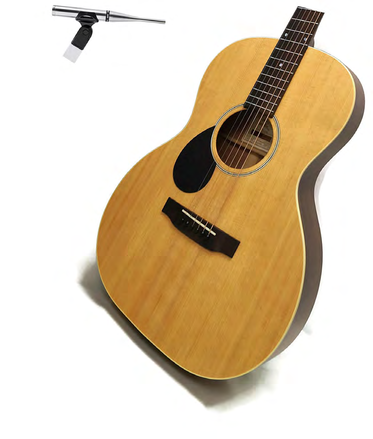

Below: Figure 7: Measurement setup. The guitar is angled at approx. 75 degrees

30cm

75°

36 ACOUSTICS BULLETIN MARCH / APRIL 2021

Crossway, Birmingham (formerly Civic House), SonaSpray fe applied to the ceiling throughout the impressive foyer area of Crossway, Birmingham, Chosen for its attractive, lightly textured & seamless finish, SonaSpray fc achieves superb acoustics without design compromise. Credit to Asso acoustics

TECHNICAL CONTRIBUTION

3. Results and sensitivity analysis. In this section the IRs gathered will be shown as their corresponding FFT, and their capability of being informative to characterise each step of the instrument manufacturing process will be discussed. Each re-work step will be characterised by a ‘before-and-after’ measurement, and for clarity the colour blue will always represent the response before changes were made to the instrument, while the colour red will represent the response after a change was made. All plots show the same frequency range, starting from approx. 20Hz and ending at approx. 750Hz. The ﬁ rst sensitivity test was aimed to see if any diﬀ erence between the response of the instrument with or without strings’ tension was measurable. The horizontal division in the spectral plot is 3 dB, and it is possible to appreciate a diﬀ erence in the region between 220Hz and 300Hz, where the blue curve represents the guitar with the strings in standard tuning, and the red curve is the guitar without strings. It is worth considering that the overall dynamic range of the spectra is more than 50 dB, thus making this diﬀ erence quite subtle, nonetheless this result is accordance with the literature; the peak in the frequency response corresponds to the (0,0) mode of the soundboard ³ , ⁷ , ⁸ , ¹⁰ for this type of guitar. The second test wanted to quantify the impact of the varnish on the response of the instrument. Now in blue there is the response of the guitar without strings, and in red the response of the guitar without strings and without varnish on the soundboard. A large change is visible; the frequency of the Helmholtz resonance changed from 114Hz to 108Hz (more than a semitone) because of a shift in frequency of the (0,0) mode due to changes in mass and stiﬀ ness of the soundboard ³ , ⁷ . Also, a higher modal resonance at 400Hz has moved down to 380Hz, which is the equivalent of more than a semitone too. The third test wanted to check the eﬀ ects of opening the guitar body removing the back. This re-work step was aimed at cancelling the Helmholtz resonance which is the lowest resonance

-45

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

db Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 740 760 Hz

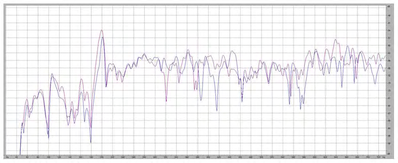

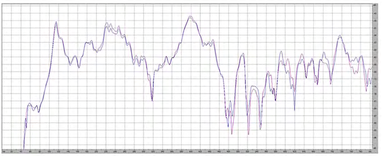

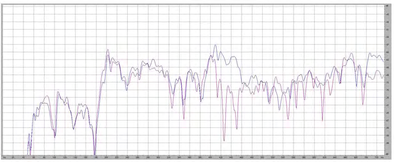

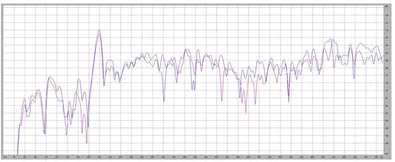

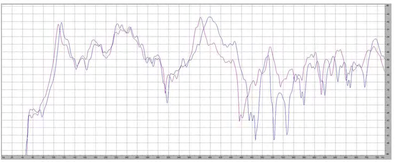

Above: Figure 8: FFT plot (linear frequency axis) of the guitar in its original state (blue) and after removing the strings (red). Horizontal division is 3dB

-45

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

db Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

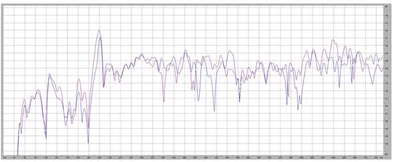

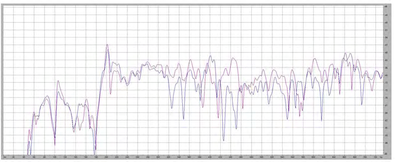

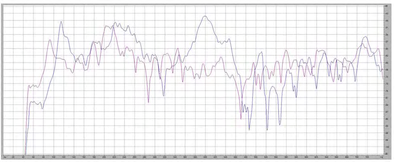

Above: Figure 9: FFT plot (linear frequency axis) of the guitar with original varnish (blue) and without the varnish (red)

-45

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

db Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

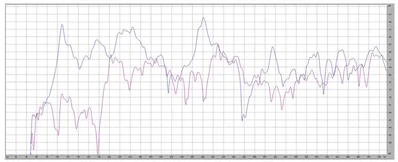

Above: Figure 10: FFT plot (linear frequency axis) of the guitar without varnish on the soundboard (blue) and the guitar with a removed back (red). Red arrows show the absence of the Helmholtz resonator at 108Hz and the shift in frequency of the (0,0) mode from 220Hz to 202Hz.

shown by the instrument. Another consequence is the downward shift in frequency of the (0,0) mode of the soundboard. The Helmholtz resonance and the (0,0) mode repel each other ⁷ , and the absence of the former lets the latter shift down in frequency ³ , ⁷ . The absence of the Helmholtz resonator at 108Hz is clear, as well as the frequency down-shift of the (0,0) mode, which went from 220Hz to 202Hz, which is almost a full tone. Further to this, other peaks of the response are also greatly attenuated.

After removing the back of the guitar there was the opportunity to verify the sensitivity of the measurement technique while ‘tuning’ the soundboard braces. At this point an accurate ﬁ nite element model (FEM) of the soundboard and corresponding correlation between changes in the bracing pattern and alteration of the frequency response would have made possible to target an ideal acoustic response as investigated by Boven ¹⁰ . Unfortunately, such model was not available for this speciﬁ c guitar model. P40

cee

38 ACOUSTICS BULLETIN MARCH / APRIL 2021

MASON UK LTD

Vibration Control Products & Acoustic Floor Systems

Floating ﬂ oor samples – reducing project risk

Due to difﬁ culties in predicting resultant noise levels from impact, in-situ testing can reduce the uncertainty.

We at Mason UK are focused on providing correctly engineering solutions and thus have been supporting acoustic drop tests for prospective projects for many years. Being able to test an impact and vibration mitigation system on site helps reduce project risk by yielding objective performance data which, in our experience, helps tune speciﬁ c requirements and boosts end user/client conﬁ dence. This is especially true in applications such as gymnasia and exercise studios.

Free weights area of a Gymnasium

▲

The recent Covid pandemic and associated social distancing has hindered such site tests and hence why we are now offering to supply acousticians with their own test bases. Both the lightweight spring and rubber construction types are purposely made to be easily transportable, like for like in construction make-up and robust enough to withstand years of testing.

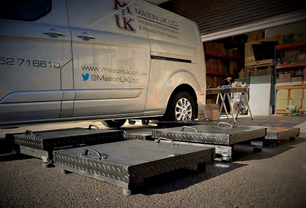

Mason UK Test Base assembly line

▲

We prefer to directly support any new project where possible however, we would be pleased to supply test bases to any consultant that would like to perform independent testing. If interested, please do get in touch with us.

On-site testing for a prospective gymnasium

▲

A world leader in noise & vibration control products for over fifty years setting the standard for consultants & architects. Our floating floors, walls & suspended ceilings provide total acoustic isolation, and are just some of the many products and services we can supply.

TYPICAL APPLICATIONS: • Music Rooms • Night Clubs • Plant Rooms • Recording Studios • Bowling Alleys • Building Isolation • Cinemas • Gymansia • Laboratories • M+E Isolation • Suspended Ceilings • Industrial • Piping Systems

www.masonuk.co.uk

+44 (0)1252 716610 info@masonuk.co.uk Unit 6 Abbey Business Park, Monks Walk, Farnham, Surrey GU9 8HT

TECHNICAL CONTRIBUTION

Figure 11: Soundboard bracing nomenclature (left), X-brace (green), tone bars (red), secondary tone bars (light blue and yellow). Bracing in its original state (centre) and with one tone bar removed (right). Note the large rectangular proﬁ le of all the braces

Accordingly, a traditional approach of ‘scalloping’, ‘shaving’ and altering the proﬁ le of the braces from rectangular to triangular was attempted and measured after each step. The results were not always going in the direction which some authors praise ⁷ , but they were nonetheless clearly visible. The ﬁ rst modiﬁ cation was to completely remove one tone-bar, as per Figure 11. Removing one tone bar had a remarkable eﬀ ect on the frequency response of the instrument, as it’s clearly visible in Figure 12. The eﬀ ect of this manufacturing step is very large and visible in the measurements, with a reduction of almost 15 dB in the amplitude of the resonances located between 410Hz and 450Hz. After this, several other steps were performed: • Shaving the X-brace on the treble side (left side looking at the soundboard from the inside of the body) and one secondary tone bar (light blue in Figure 11). • Shaving the X-brace on the bass side (right side looking at the soundboard from the inside of the body) and one secondary tone bar (yellow in Figure 11). • Final weight reduction of all the braces and reduction of the weight of the bridge

-45

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

een OMIT,

-78

-81

-84

-87

-90

-93

-96

Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

Above: Figure 12: FFT plot (linear frequency axis) of the guitar with removed back (blue) and the guitar with one tone bar removed from the soundboard (red). The removal of one tone bar has a dramatic eﬀ ect on the response, reducing of almost 15dB the amplitude of the resonances between 410Hz and 450Hz

-45

-48

-51

Wy > oD

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

The results are plotted in sequence in Figures 13, 14 and 15. P42

Above: Figure 13: FFT plot (linear frequency axis) of the guitar without the tone bar (blue) and the guitar with some additional weight reduction applied to the treble side of the X-brace.

40 ACOUSTICS BULLETIN MARCH / APRIL 2021

Exposure

to a wider

variety of

projects?

j ?

What are

you looking

y g

for in your

f i

Acoustics

A i

Greater career prospects?

career?

PENGUIN =<

Or is it a wider range of duties and responsibilities?

A greater

range of

duties and

i d

responsibilities?

Whatever the reason, Penguin

, g

Recruitment are here to help!

R i h h l !

Penguin Recruitment is a multi-disciplined Engineering and Environmental Recruitment Consultancy established in 2004. We offer nationwide and international job opportunities for anyone looking to kick start or develop their profession.

With extensive knowledge in the Acoustics and Air Quality Industry, we are proud to offer an energetic can-do approach whilst providing a friendly, professional and knowledgeable service at all times.

If you’re a growing business looking to access a wider pool of candidates to help with your expansion plans, then please get in touch!

Penguin Recruitment advertise on more job boards than any other specialist recruitment agency within the acoustics industry, and have a well-established and expansive network of candidates accumulated over 16 years of service, allowing us to provide leading advice on the current candidate market.

For more information please contact Amir Gharaati or Charlotte Lavender on 01792 365000 , or email amir.gharaati@penguinrecruitment.co.uk and charlotte.lavender@penguinrecruitment.co.uk

www.penguinrecruitment.co.uk

TECHNICAL CONTRIBUTION

From this sequence of measurements, substantial information can be gleaned, and such data is suﬃ cient to guide a maker with trained ear or an optimisation algorithm to obtain a desired ﬁ nal response, as demonstrated by Boven in his research ¹⁰ . A last set of results will be included here to demonstrate how tuning the back of the guitar with the aid of this measurement technique is substantially identical and can lead to an enhanced bass response of the instrument. Another reﬂ ection is that this process is also essentially the same used to tune a resonant panel loudspeaker. A guitar back is normally braced in a simpler way compared to the soundboard, with four braces laid parallel to each other. Some authors call this pattern ‘ladder’ bracing ⁷ , ⁸ , as visible in Figure 17. Gore and Gilet demonstrate that ladder bracing provides the instrument with loudness, but they suggest diﬀ erent patterns to make the back of the guitar contribute to the ﬁ nal response with additional resonances ⁷, so to say, to enhance its tone and response. P44

-45

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

Hz 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

Above: Figure: 14: FFT plot (linear frequency axis) of the guitar with weight reduction applied to the treble side of the X-brace (blue), and of the guitar with weight reduction applied to both the treble and the bass side of the X-bar (red)

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

-99

Hz 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

Above: Figure 15: FFT plot (linear frequency axis) of the guitar with weight reduction applied to both treble and bass side of the X-brace (blue), and of the guitar with weight reduction and proﬁ le optimisation applied to all braces and bridge

30cm

Above: Figure 16: Back with standard ladder bracing pattern (above left) and back re-worked with alternative bracing pattern similar to the one used by Gore and Gilet in ⁷ . In red the excitation point and in green the suspension point

42 ACOUSTICS BULLETIN MARCH / APRIL 2021

wie

CORRECT INSTALLATIONS LEAD TO CORRECT RESULTS.

Manufacturing solutions for architectural acoustics and vibration problems since 1969 .

Through the exchange of CAD files, AMC Engineers provide clear instructions for the installation of acoustic ceiling hangers, partition wall ties and floating floor mounts.

SRS + SYLOMER ®

AMC ACOUSTIC CEILING HANGER SRS + SYLOMER ®

(3) LAYERS:

LAYER #1 - 15 mm PLYWOOD

LAYER #2 - 15 mm GYPSUM BOARD

LAYER #3 - 15 mm GYPSUM BOARD

EP 400 + SYLOMER ®

PERIMETER SOFFIT

25,4mm PLYWOOD WINDOW FRAMING

REMOVABLE HARDWOOD STOP TO

SECURE LAMINATED GLASS / 25,4mm X 25,4mm

LAMINATED GLASS. 12,7mm

EXISTING WINDOW

EP 500 + SYLOMER ®

REMOVABLE HARDWOOD STOP TO

SECURE LAMINATED GLASS / 25,4mm X 25,4mm

25,4mm PLYWOOD WINDOW FRAMING

AMC ACOUSTIC WALL TIE EP 400 + SYLOMER ®

4 AMC FLOOR MOUNTS + SYLOMER ®

50,8mm FIBERGLASS INSULATION

ACOUSTIC FABRIC

AMC ACOUSTIC FLOOR MOUNT EP 500 + SYLOMER ®

FABRIC TRACK

FLOATING FLOOR

LAYER #1 & #4 - 19mm FINISHED PLYWOOD

LAYER # 2 & #3 - 15mm GYPSUM BOARD

WANT TO LEARN MORE? Register for a lunch and learn

4 4

AKUSTIK+SYLOMER FLOOR MOUNTS, IMPACT NOISE INSULATION FLOOR MOUNTS.

Bipin J Mistry 158 Kedleston Road, Leicester, Leicestershire, LE5 5BL

Lewis Metcalf 27 Blackfriars Road, Syston, Leicester LE7 2DS

+44 07711 349 425 +44 0116 2219659

+44 (0) 7523 118 007

bjmistry@amc-ui.co.uk

lmetcalf@amcsa.es

www.mecanocaucho.com www.akustik.com www.mecanocaucho.com www.akustik.com

TECHNICAL CONTRIBUTION

Before discussing the results, some considerations must be shared. The excitation point inﬂ uences the modal response of a resonating plate, as highlighted in ² when discussing the best location for the exciter to inject energy in the soundboard. When measuring the back, it is then possible to accidentally place the exciter on a nodal line, and to impair the response of the panel at one or more resonant modes. Furthermore, also the point used to suspend the back during its measurement has an impact on the response; it was decided to place the exciter on a side of the lower bout, while the panel was suspended from a point near the edge of the plate in proximity of the end of the second brace (see Figure 16). The eﬀ ects of a diﬀ erent bracing pattern are visible in Figure 17. The large resonance at 191Hz was replaced by two separate ones, the ﬁ rst at 174Hz and second at 148Hz. A substantial amount of energy was lost between 380Hz and 480Hz, in line with the literature indicating that the traditional bracing patter is ‘loud’. From the perspective of a loudspeaker system designer this modiﬁ cation would be considered an improvement, due to the ﬂ atter frequency response shown by the modiﬁ ed bracing pattern. Similar reﬂ ections could be made when comparing the initial spectrum of the soundboard shown in Figure 9 with the ﬁ nal one presented in Figure 15. Eventually, the back was re-glued and the new complete guitar, without varnish on the soundboard, was measured again. Comparing the original response (without strings) and the ﬁ nal one (without strings) gives the cumulative diﬀ erence of a manufacturing process guided by acoustic measurements compared to a traditional ‘blind’ one. The Helmholtz resonance of the body has moved from 114Hz to 92.3Hz, which is approximately two tones below and closer to the lowest note in the range of the instrument, which is an E2 at 82.4Hz. The (0,0) mode of the soundboard has moved from 220Hz to 202Hz, which is about a whole tone below. The two modal resonances of the back are visible at 148Hz and 178Hz, almost exactly where they were on the free back. This new arrangement of peaks is more balanced and suggests an

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

-99

-102

db Hz 40 50 60 70 80 90 100 110 120 130 140 150 160 170 180 190 200 210 220 230 240 250 260 270 280 290 300 310 320 330 340 350 360 370 380 390 400 410 420 430 440 450 460 470 480 490 500 510 520 530 540 550 Hz

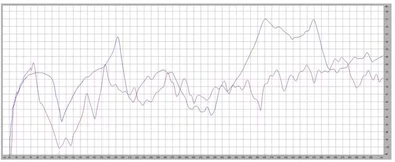

Above: Fig 17: FFT plot (linear frequency axis) of the back with standard ladder bracing pattern (blue), and the back with alternative bracing pattern (red)

-48

-51

-54

-57

-60

-63

-66

-69

-72

-75

-78

-81

-84

-87

-90

-93

-96

-99

-102

Hz 20 40 60 80 100 120 140 160 180 200 220 240 260 280 300 320 340 360 380 400 420 440 460 480 500 520 540 560 580 600 620 640 660 680 700 720 Hz

enhanced bass response, which is normally praised by players and listeners ³ , ⁷ . The loss of energy in the region between 360Hz and 460Hz also contributes to a ﬂ atter response in the low-midrange and midrange.

been drawn, it would be proﬁ table to implement other types of analysis of the responses of musical instruments. The authors envision that it would be possible to monitor the impact on the acoustic response of the instrument due to the bracing patter or due to the distribution of masses in real time. This would require diﬀ erent type of stimuli, e.g. white or pink noise, and real time spectrum analysis, but it would make the design and prototyping of new instruments a much more predictable task to implement. Also, now that this method to retrieve the acoustic response of a musical instrument has been understood, investigation about measuring the impedance curve of the guitar-and-exciter system could be undertaken to reﬁ ne the lumped element models used in the literature today, and to explore the relationship between such impedance curve and the acoustic impedance of the instrument in the hope to enhance the radiation eﬃ ciency of the resulting instruments. This reﬂ ection also brings forward the opportunity, or the necessity, to correlate the frequency responses of guitar soundboards with accurate FEM analysis and correct material characterisation. Once this will be done, the use of artiﬁ cial intelligence

Above: Figure 18: FFT plot (linear frequency axis) of the complete guitar without varnish before the re-work process (blue), and of the complete guitar without varnish after the bracing pattern, weight, and proﬁ le optimisation (red)

4. Final conclusions and future work The data collected and analysed so far indicates that the method discussed in this paper is mature and ready to be included in the manufacturing process of musical instruments. With accurate and repeatable measurements, we can quantify changes as small as the eﬀ ect of the tension of the strings on the soundboard, as well as the eﬀ ects of the varnish on the ﬁ nal tone of the instrument. It would be remarkable if this technique could also be used to quantify the consequences of materials ageing, and this is a direction of investigation which the authors recommend. From the manufacturing point of view, further research must be done to estimate how short the sine-sweep test signal could be to minimise measurement time and maximise eﬃ ciency in processes where time is key, namely to mass produce instruments. Also, now that an analogy between loudspeaker tuning and soundboard tuning has

UGE

44 ACOUSTICS BULLETIN MARCH / APRIL 2021

UKAS accredited calibration facility, see UKAS website for scope of UKAS accredited calibrations offered: anv.ms/ukas

SALES - HIRE - CALIBRATION

One-Stop Shop for Acoustic & Vibration Calibration

bration Calibration

• Sound Level Meters • Acoustic Calibrators & Pistonphones • Microphones* • Octave/Third Octave Filters • Accelerometers* • Vibration Meters* • Tapping Machines • Reverberation

FOCUSED ON: - Fast Turnaround - Competitively Priced - Customer Service

“We are very pleased with the excellent service we received from ANV in recent months. Most notably, they provided an efficient and hassle free calibration service with which we couldn’t have been more satisfied.” - Jack Richardson Hilson Moran Partnership Ltd

*not accredited by UKAS

WWW.NOISE-AND-VIBRATION.CO.UK | CALIBRATION@ANV.UK.COM | 01908 642846

are generally praised ¹ , ¹³ , so why shouldn’t we prefer a similar feature from a musical instrument? Is it possible that, being the response of traditional instruments everything but ﬂ at, the general audience got used to its characteristics and limitations? This advocates that further research about musicians’ preference and its correlation with frequency responses of guitars (or other acoustic instruments) is now possible and desirable. The authors have played and built guitars for many years, and still reckons that the tones they normally prefer are those we heard in the recordings we are most familiar with. But shouldn’t we challenge our habits when new knowledge is available?

to guide wood machining robots to achieve a desired target performance from a soundboard will be desirable and achievable too. For the time being we can surely use the IRs gathered with this method to create useful auralisation of all the manufacturing steps, which can be used to guide makers with trained ears towards their desirable acoustic performance. Another interesting question raises from the analysis of the responses of the diﬀ erent bracing patterns of the guitar back being presented in this paper (Figure 17); the original frequency response is very ‘peaky’, while the re-worked one is ﬂ atter. In literature, loudspeakers which show a ﬂ at frequency response

Acknowledgements This research would not have been possible without the incredible experience and knowledge of Vince Hockey, who worked all his life building and repairing guitars and showed the most genuine and useful curiosity about the chances to use measurements together with our hearing to perfect an instrument. Special thanks go to Professor Angelo Farina, to Dr Giacomo Squicciarini from Univerisity of Southampton and Dr Domenico Balsamo from University of Newcastle, who supported the authors in what, seemingly, was just a crazy idea.

References [1] A. Farina, “Simultaneous measurement of impulse response and distortion with a swept-sine technique”, paper 5093, AES 108th Convention, 2000. [2] L. Ausiello et Alii, “Guitar soundboard measurements for repeatable acoustic performance manufacturing”, Reproduced Sound 2018, Vol. 40, pt.4, Bristol, 2018. [3] Fletched, Rossing, “Physics of musical instruments”, Springer, 1998. [4] Schimmel “Made in Braunschweig”, https://www.youtube.com/watch?v=Em3oOJLTMks , minute 2:15. [5] N. Giordano, “Mechanical impedance of a piano soundboard”, J. Acoust. Soc. Am. 103, 1998. [6] D.J. Ewins, “Modal Testing: Theory, Practice and Application, Wiley, 2000 [7] T. Gore, G. Gilet, “Contemporary acoustic guitar design and build”, vol. 1, Gore Publishing, 2016 [8] R. M. French, “Engineering the guitar”, p.96, Springer, 2009. [9] D. Bourgeois, “Voicing the steel string guitar”, American Lutherie, n.24, p16, BRB2 p.470, 1990. [10] Boven, “Dynamic response optimization of an acoustic guitar”, master thesis, TUDelft, 2017. [11] Farina, http://pcfarina.eng.unipr.it/Aurora_XP/index.htm [12] Farina, Audio Precision, “Impulse response measurements by exponential sine sweeps”, http://pcfarina.eng.unipr.it/Public/Presentations/AudioPrecision-workshop.pdf , Workshop Casa della Musica, Parma, 2008. [13] J. Eargle, “Loudspeaker Handbook”, Springer, 1997.

UGE

ACOUSTICS BULLETIN MARCH / APRIL 2021 45

INSTITUTE AFFAIRS

Institute response to ICCAN’s Future of Aviation Noise Management

In October 2020, the Independent Commission on Civil Aviation Noise (ICCAN) published a consultation document entitled: ‘The Future of Aviation Noise Management: ICCAN’s emerging view’. With the assistance of the Institute’s Environmental Noise Group, led by Steve Mitchell, the following response was prepared and submitted to ICCAN.

ntroduction: This response has been prepared by members of the Institute of Acoustics (IOA) and approved by its Governing Council. For ease of reference, the survey questions included in the consultation document are set out below, followed by the IOA response. The ICCAN draft goals and associated activities are listed at the end.

IOA response Yes – in part

building envelope for dwellings, schools or other sensitive receptors aﬀ ected by aircraft noise. But some of those standards already exist. We have international standards for aircraft noise emission, and through the British Standards Institute, standards already exist which assist in determining the appropriate level of building envelope sound insulation for buildings. Setting standards for the amount of noise impinging on properties is fraught with diﬃ culties and that is why few such standards can be found in noise management. Furthermore, we feel that any noise standards must ﬂ ow from the over-arching noise policy and that they should always be set taking into account the full current context, and not just considering only the noise aspects. The Noise Policy Statement for England (NPSE) expresses this as ‘in the context of government policy on sustainable development’. Government, is better placed to set policy and any associated relevant noise standards. With regards to enforcement, we agree that the authorities listed (CAA, government and local planning authorities) may not have always adequately enforced airport noise management. However, it is important to understand exactly why any failure of enforcement has occurred. For example, it may be due to a lack of powers or it could be due to lack of resources. With the expertise that ICCAN is developing in understanding how noise is managed in all manner of situations around the UK, ICCAN could play a role in identifying the cause of any shortcomings in enforcement and provide advice regarding appropriate noise management actions to take in particular situations. P48

Please could you provide a brief explanation for your response? The IOA support the principle of independent bodies contributing to noise management. We feel ICCAN could have a useful role as a statutory consultee. This is in line with the recommendations of the Airports Commission in 2015, where it states: An independent aviation noise authority should be established with a statutory right to be consulted on ﬂ ight paths and other operating procedures. The authority should be given statutory consultee status and a formal role in monitoring and quality assuring all processes and functions which have an impact on aircraft noise, and in advising central and local Government and the CAA on such issues. With regard the proposal that ICCAN should have powers to set standards, there is a lack of clarity regarding what type of standard is being considered. We believe that ICCAN should participate actively in the discussion leading to any standards and should, where necessary, produce good practice guides. However, the setting of any standards should not be the sole responsibility of ICCAN. ICCAN should be able to advise the government, if asked by the Government to do so, but not to be the sole adviser. In this sense, we note that the Airports Commission recommendation did not refer to a commission which set standards. With regards to aviation, there are several diﬀ erent types of standard that could apply. They might cover the noise emitted by aircraft, the noise impinging on properties and the sound insulation provided by the

1. Future of aviation noise management Our emerging view is that in the short term ICCAN should have statutory status, with power to set standards, be a statutory consultee on planning applications and airspace change proposals, and give advice to government and others that must be considered. It is our view that existing regulators (CAA, government, local planning authorities) should retain an enforcement role.

Do you agree with our emerging view on the future of aviation noise management, and the role ICCAN should play? Yes – in full/Yes – in part/No

46 ACOUSTICS BULLETIN MARCH / APRIL 2021

NOISESCOUT - A SOLUTION THAT SIMPLY WORKS

’

Unattended Noise Mo nitoring Live level reporting and alerts.

New Instrument Hire Service - Now Available

NTi Audio UK · Stevenage, Hertfordshire, UK Phone + 44 1438 870 632 · uk@nti-audio.com

www.noisescout.com

five Mapping the way to a quieter future .» for smaller consultancies # Pay-as-Vou-Go Licence - modest upfront cost « Pay only when NolseMap is running «All UK standard calculation methods available: Road, Rail, Construction, Industrial, Minerals «Easily create noise models from capture of screenshots or scan of plans Overlay of noise maps onto base plans © Context-sensitive built-in help & sample models ¢ On-line videos and support by email « Long-established, proven reliability M=na

Try ODEON 16 www.odeon.dk

INSTITUTE AFFAIRS

Do you agree with the draft goals which will help us achieve our vision? Yes/No If you answered no, please could you provide a suggestion for how should they be framed

2. ICCAN’s future vision and goals Do you agree with our draft vision to make the UK the world leader in managing aviation noise? Yes/No

IOA response Yes

Goal – ‘Setting standards’ Increase the consistency and transparency in the management of aviation noise by setting enforceable standards and providing guidance to regulators.

Please could you provide a brief explanation for your response? Given the way the question has been asked, it will be surprising if any respondent says ‘no’. Clearly the IOA supports trying to make the management of aircraft noise in the UK as good as it can be. We would, however, question the wisdom of seeking to be the ‘world leader’. Firstly, does it really matter if we are the world leader? What is important is that we manage noise eﬀ ectively. Secondly, elsewhere, there have recently been ambitions for the UK to become a ‘world leader’ and the outcome has not been achieved leading to some ridicule. It is arguably incautious, therefore, to express such an ambition in this way.

IOA response Setting enforceable standards – No

Providing guidance to regulators – Yes

See comments with regards setting standards in our response to Question 1. P50

Time to Renew your Membership

• Thank you to all those members who have renewed so promptly • If you haven’t done so, it would be helpful if you could renew as soon as possible

If you have any queries about membership, please contact Emma Emma.Lilliman@ioa.org.uk or you can call her on 07767 088 869 between 9am -5pm Monday to Friday

FOR MORE INFORMATION: www.ioa.org.uk E: membership@ioa.org.uk T: +44 (0)300 999 9675 Institute of Acoustics, Silbury Court, 406 Silbury Boulevard, Milton Keynes MK9 2AF

48 ACOUSTICS BULLETIN MARCH / APRIL 2021

Industry leaders choose SoundPLAN

You should too!

SoundPLAN noise 8.2

SoundPLAN essential 5.1

The high-value, entry level version of the software, ideal for ocassional or simple projects has just been updated:

The world-beating. all-round version of the software! Powerful, tailored to your specific needs with a simple to use interface, advanced data management capabilities and first-class graphic outputs.

• Compitable with NoizCalc (audiotechnik)

•The latest ISO building acoustic standard now incorporated

“The Original Noise Modelling Software”

soundplan-uk.com

Road - Rail - Industry - Stages - Aircraft

Building acoustics - Wind turbines - Workplace

...and more!

UK distributor

INSTITUTE AFFAIRS

Goal – ‘Putting people’s health and wellbeing at the heart of aviation noise policy’ Lead research into the health and wellbeing impacts of aviation noise.

Are the key activities we identify to help us achieve our goals the right ones? Do you have any views on which activities should take priority over others?

IOA response Yes – but remembering good health and wellbeing can also come from a vibrant economy through business, from individuals being able to travel for holidays and people being employed, all of which the aviation industry can oﬀ er.

IOA response The consultation lists 12 activities, some of which we agree with and some we do not, as follows. We feel ICCAN should review and then potentially set best practice guidance for reporting noise exposure, health eﬀ ects and deﬁ ning airport reporting requirements. Whilst airport reporting should be consistent in principle, what is appropriate for an airport aﬀ ecting a very small population may not be appropriate for one aﬀ ecting many thousands of people. The setting of standards for noise insulation, compensation and mitigation (e.g., decibel or some other quantiﬁ ed levels above which an airport must oﬀ er noise insulation, or pay compensation etc in given circumstances) ﬂ ows from policy that the Government produces. Whilst ICCAN should research the eﬀ ects of noise and the preferred targets to address these eﬀ ects, and thus advise the government accordingly, it is for policy makers to decide how much of the burden of noise is acceptable to society, in the overall national context, weighed against the social and economic beneﬁ ts aviation brings. One challenge in managing noise around airports is to make sure that all those aﬀ ected by noise are considered. In many cases stakeholders who most strongly represent their views are not those who suﬀ er the greatest eﬀ ects of noise. We would like ICCAN to address this in their work plan so that noise management addresses the health eﬀ ects of noise proportionately across populations aﬀ ected. We support the proposed role in research, and would ask what budgets ICCAN expects to have available to support these activities. We would also like to see a research roadmap with clear objectives and strategy, which is based on feedback from all stakeholders. Eﬀ ective communication is also key moving forward - it’s not just about the information presented but also how it is presented and communicated. We would also like ICCAN to consider key aspects to the eﬀ ective development and implementation of noise envelopes in building sustainable aviation going forward. ICCAN should also be mindful of the role of non- acoustic factors in managing noise eﬀ ectively as these can account for up to a third of the variance in noise annoyance. As aviation grows back there is an opportunity not only to reduce noise, but also build trust, leading to a more sustainable future for aviation. P52

Goal – ‘Focus on the future’ Ensure future policy and regulatory systems for managing noise are ﬁ t-for-purpose, and that future technological advances have noise management at the heart of their development.

IOA response Yes – but the systems must not only be ﬁ t for purpose but also eﬀ ectively implemented.

50 ACOUSTICS BULLETIN MARCH / APRIL 2021

I O

L I T

M O

D E

P L

A N

N I N

C O

N S

T R

U C

T I O

V A

N O

R E

N C

N A

T E

I N

M A

Vibration Noise Geotech

INSTITUTE AFFAIRS

3. ICCAN’s performance to date What are your reﬂ ections on ICCAN’s establishment, and its work so far?

Has ICCAN’s existence and role given you more or less conﬁ dence that aviation noise will be managed better in the future? More/Less/Not sure

• Providing advice on noise restrictions, noise envelopes, and noise mitigation activities in airspace change proposals. • Setting consistent standards for industry and community engagement and collaboration.

ICCAN has spent much time consulting those aﬀ ected by noise, and its role in representing this large group of stakeholders has been productive. At the moment, and possibly not surprisingly, the reports produced on the metrics and the eﬀ ects of noise have usually restated and/ or consolidated what is already known, rather than provided any clear or new ways of addressing the problem of noise.

IOA response Not sure

‘Putting people’s health and wellbeing at the heart of aviation noise policy’ Lead research into the health and wellbeing impacts of aviation noise.

Please could you provide a brief explanation for your response? It is too early to say, but much will depend on ICCAN having resources and expertise available to study in detail, and consult widely on the diﬃ cult questions that remain. ICCAN will also need to be sure it carries with it the support of all the stakeholders, which will be essential for any successful implementation of its work or recommended approaches. We are pleased that IOA members have been assisting ICCAN with technical advice, and the IOA would like to continue to oﬀ er our members’ expertise in the future where we can help. IOA response Not sure

Key activities: • Build partnerships with academia and health research establishments to deliver research priorities. • Design and run the next series of Aviation Noise Attitude Surveys in order to inform government policy on annoyance. • Equip decision-makers in Government and industry with a clearer view of impact of aviation noise on public health.

Are you conﬁ dent that ICCAN plays a truly objective independent role in aviation noise management? Yes/No/Not sure

‘Focus on the future’ Ensure future policy and regulatory systems for managing noise are ﬁ t-for-purpose, and that future technological advances have noise management at the heart of their development.

ICCAN draft goals 1. ‘Setting standards’ Increase the consistency and transparency in the management of aviation noise by setting enforceable standards and providing guidance to regulators .

Please could you provide a brief explanation for your response? Our response reﬂ ects the fact that we feel it is too early to tell. We support ICCAN’s objective to be independent, and as ICCAN begins to make recommendations, it will be increasingly important that scrupulous independence is maintained. Perhaps this can be achieved through internal checks and balances on the independence of ICCAN’s outputs.

Key activities: • Play critical role in advising on airspace modernisation and future aviation strategy. • Engage fully in development of regulations around new technologies, including drones, urban air mobility (UAM), supersonic, alternative fuel aeroplanes. • Encourage and facilitate innovation in the measurement and communication of aviation noise impacts, including geospatial advancements. • Ensure noise reduction sits alongside carbon reduction as the fuel for advancement in technological improvements.

Key activities: • Setting enforceable standards, issuing best practice guidance and advice on all matters relating to aviation noise (e.g., insulation, compensation, mitigation, metrics, modernisation). • Advising regulators/decision- makers on the setting of clear and enforceable targets (and, where necessary, restrictions) for aviation noise management. • When applicable, advising on planning applications.

Do you think ICCAN’s work has materially helped the way in which decisions about aviation noise are taken? Yes/No/Not sure

IOA response No

Please could you provide a brief explanation for your response? * It is too early to say, but we are optimistic ICCAN can help in future.

The ICCAN consultation document can be found at:

https://iccan.gov.uk/wpcontent/uploads/2020_10_23_Future_of_

aviation_noise_management_ICCAN_emerging_view-1.pdf

52 ACOUSTICS BULLETIN MARCH / APRIL 2021

exon NEED TEACHERS suPERPH provid 2 iH

CMS Danskin Acoustics is part of the

www.PerformanceTechnologyGroup.com

FEATURE

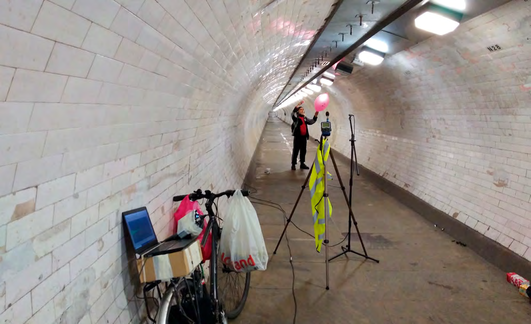

Greenwich tunnel balloon measure

London Greenwich foot tunnel acoustics characterisation

Dr Luis Gomez-Agustina and his colleagues at London South Bank University (LSBU) have surveyed the acoustic characteristics of the Greenwich foot tunnel in London, UK. Full details and results will be published in Acoustics Bulletin in the near future.

By Dr Luis Gomez-Agustina

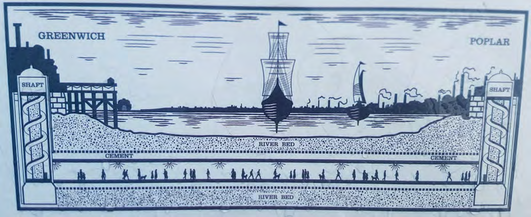

he Greenwich foot tunnel in London runs 15m below the Thames riverbed, connecting the Cutty Sark Gardens in the Royal Borough of Greenwich on the south bank with the Island Gardens in the Borough of Tower Hamlets on the north bank. The tunnel was inaugurated in 1902 and, since then, has served pedestrians as an all-weather and reliable means to get from one side of the Thames to the other.

Survey technique In December 2020 (and for the ﬁ rst time ever) a comprehensive survey to characterise the acoustics of the tunnel was undertaken. It was conducted by LSBU senior lecturer and researcher, Dr Luis Gomez- Agustina, and former LSBU masters course in acoustics student, Pedro Vazquez-Barrera, with the assistance of PhD candidate, Doug Shearer.

The tunnel is 370m long and the footpath has an internal width of 3.2m and height of 2.65m. The ﬂ oor is made of stone paving and the internal walls are covered with glazed tiles. The subterranean link is used by 1.2million people a year and the listed building¹ has become an interesting London landmark because of its unusual and interesting acoustic characteristics.

54 ACOUSTICS BULLETIN MARCH / APRIL 2021

Results Examples of early analysis of the results shows that the tunnel has a typical RT30 and EDT of 6.8sec and 3.1sec respectively at 125Hz and 5.4sec and 3sec at 1kHz. Sound pressure level decayed by 8 dBZ between two receiver positions situated at 10m and 160m from one of the source positions. STIPA values dropped at receiver positions from 0.65 (good) at 10m to 0.53 (fair) at 40m from one of the source positions. Subjective assessments of speech found that audibility of the signal was largely unattenuated with distance. Speech remained understandable for surprisingly long distances from the source. However, at greater distance ranges, the clarity of the message diminished increasingly with distance to incomprehensible perception.

The survey took place during early morning hours when the frequency of passage, background noise and activity is minimal. Measuring equipment was all portable and battery operated due to the lack of main power supply in the tunnel. Part of the measurement equipment was installed on Luis’ bicycle to serve as a mobile measuring station. Two researchers took measurements in the tunnel at times of minimal background noise, when there was no activity and no pedestrians using any part of the tunnel. Typical background noise during measurements was 36 dBA. Bursts of party balloons ﬁ lled with air were used to excite the sound ﬁ eld at two source positions and to obtain the impulse response at 14 receiver positions. Acoustics

parameters derived from impulse responses measurements were based on BS ISO 3382-1². These included reverberation time (RT30, RT20), early decay time (EDT) and deﬁ nition (D50). Audio recordings of the impulse balloon bursts at each receiver position were also audio recorded for subjective demonstration purposes. Sound pressure level (SPL) decay with distance was measured in turns from the two diﬀ erent source positions at the 14 receiver positions. Predicted speech intelligibility was determined by taking STIPA measurements at all receiver positions. Audio recordings of standardised speech reproduced by loudspeaker were also captured at each receiver position for speech intelligibility subjective quality assessment.

Below: This plaque was installed at street level outside the tunnel by Greenwich Brough Council

References [1] Royal Borough of Greenwich. (Undated) Foot Tunnels . Available at: https://www.royalgreenwich.gov.uk/info/200259/transport_and_travel/693/foot_tunnels (Accessed on 19 Dec 2020) [2] British Standards Institution (2009). BS EN ISO 3382-1: Acoustics. Measurement of room acoustic parameters. Performance spaces

ACOUSTICS BULLETIN MARCH / APRIL 2021 55

FEATURE

ISO 717 Parts 1 & 2 and ISO 10140 series update

When the ISO 140 series was converted into the ISO 10140 series for laboratory testing, and both parts of ISO 717 were revised, they were revised and published at very diﬀ erent times. Unfortunately, this lack of joined up thinking left some parts of ISO 140 in the ISO 10140 series, which should have been in the ISO 717 series.

ISO 717 Part 2 • remove the smoothed reference curves for Ln from ISO 10140-5 because they already exist in ISO 717-2; • add an annex to ISO 10140-1 for measuring ∆L for ceiling linings; and • add the option to calculate ∆Lw,direct and ∆Llin,direct in ISO 717-2.

t the plenary meeting of ISO TC43 SC2 held in Milan in September 2015, resolution 217 was approved to correct these problems. This has meant revising both parts of ISO 717 and all relevant parts of ISO 10140 simultaneously.

Left: Phil Dunbavin, Chairman of the BSI EH/1 Committee

There have been no fundamental technical changes to the standards and the following are the key changes:

BS EN ISO 717-1:2020 Acoustics – Rating of sound insulation in buildings and of building elements, Part 1: Airborne sound insulation and BS EN ISO 717-2:2020 and Acoustics – Rating of sound insulation in buildings and of building elements, Part 2: Impact sound insulation were published by the BSI at the end of December 2020. The revised BS EN ISO 10140 series should be published shortly.

ISO 717 Part 1 • move the deﬁ nition and calculation procedures for SNQs for ∆R from ISO 10140-1 to the revised ISO 717-1; and • move the smoothed reference curves for ∆R from ISO 10140-5 to the revised ISO 717- 1.

56 ACOUSTICS BULLETIN MARCH / APRIL 2021

MAKING YOUR WORLD A QUIETER PLACE

Resolve common ‘cross-talk’ issues and reduce sound transmission via hidden voids with the SIDERISE® Ceiling Void Barrier range.

SIDERISE ® high performance Ceiling Void Barrier range delivers effective noise control, combining sound-absorbing and high-mass barrier materials.

• SIDERISE® mineral CBX and foam FLX flexible quilts

• SIDERISE® CVB rigid slab

• SIDERISE® AVC die-cut closures for profiled structural metal decks

• ⅓rd octave acoustic and reaction to fire test data
